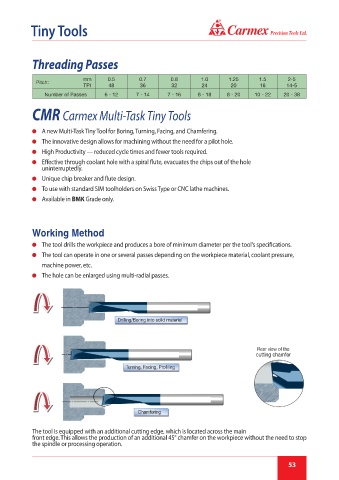

Tiny Tools

Threading Passes

mm 0.5 0.7 0.8 1.0 1.25 1.5 2-5
Pitch:
TPI 48 36 32 24 20 16 14-5
Number of Passes 6 - 12 7 - 14 7 - 16 8 - 18 8 - 20 10 - 22 20 - 38

CMR Carmex Multi-Task Tiny Tools

A new Multi-Task Tiny Tool for Boring, Turning, Facing, and Chamfering.
The innovative design allows for machining without the need for a pilot hole.
High Productivity — reduced cycle times and fewer tools required.
Effective through coolant hole with a spiral flute, evacuates the chips out of the hole
uninterruptedly.
Unique chip breaker and flute design.
To use with standard SIM toolholders on Swiss Type or CNC lathe machines.

Available in BMK Grade only.

Working Method

The tool drills the workpiece and produces a bore of minimum diameter per the tool's specifications.
The tool can operate in one or several passes depending on the workpiece material, coolant pressure,
machine power, etc.
The hole can be enlarged using multi-radial passes.

Drilling/Boring into solid material

Rear view of the
cutting chamfer

Turning, Facing, Profiling

Chamfering

The tool is equipped with an additional cutting edge, which is located across the main
front edge. This allows the production of an additional 45° chamfer on the workpiece without the need to stop
the spindle or processing operation.

53
