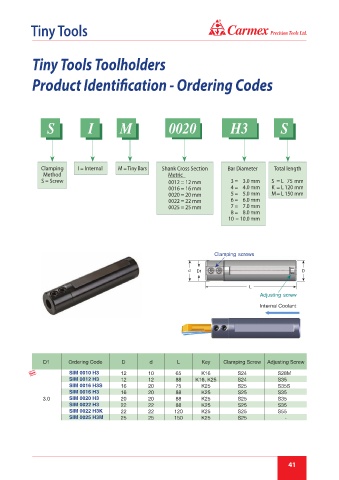

Page 41 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

Tiny Tools Toolholders

Product Identification - Ordering Codes

S I M 0020 H3 S

Clamping I = Internal M = Tiny Bars Shank Cross Section Bar Diameter Total length
Method Metric
S = Screw 0012 = 12 mm 3 = 3.0 mm S = L 75 mm
0016 = 16 mm 4 = 4.0 mm K = L 120 mm
0020 = 20 mm 5 = 5.0 mm M = L 150 mm
0022 = 22 mm 6 = 6.0 mm
0025 = 25 mm 7 = 7.0 mm
8 = 8.0 mm
10 = 10.0 mm

Internal Coolant

D1 Ordering Code D d L Key Clamping Screw Adjusting Screw
New SIM 0010 H3 12 10 65 K16 S24 S28M
SIM 0012 H3 12 12 88 K16, K25 S24 S35
SIM 0016 H3S 16 20 75 K25 S25 S35S
SIM 0016 H3 16 20 88 K25 S25 S35
3.0 SIM 0020 H3 20 20 88 K25 S25 S35
SIM 0022 H3 22 22 88 K25 S25 S35
SIM 0022 H3K 22 22 120 K25 S25 S55
SIM 0025 H3M 25 25 150 K25 S25 -

41
