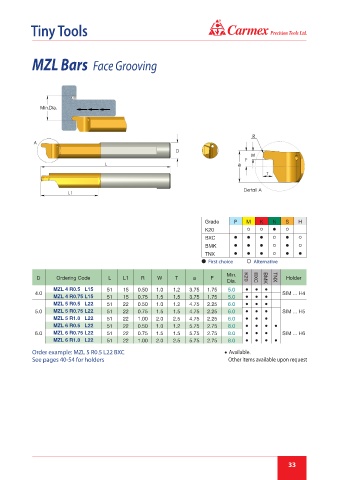

Page 33 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MZL Bars Face Grooving

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
First choice Alternative

Min.
D Ordering Code L L1 R W T a F K20 BXC BMK TNX Holder
Dia.
MZL 4 R0.5 L15 51 15 0.50 1.0 1.2 3.75 1.75 5.0 ● ● ●
4.0 SIM ... H4
MZL 4 R0.75 L15 51 15 0.75 1.5 1.5 3.75 1.75 5.0 ● ● ●
MZL 5 R0.5 L22 51 22 0.50 1.0 1.2 4.75 2.25 6.0 ● ● ●
5.0 MZL 5 R0.75 L22 51 22 0.75 1.5 1.5 4.75 2.25 6.0 ● ● ● SIM ... H5
MZL 5 R1.0 L22 51 22 1.00 2.0 2.5 4.75 2.25 6.0 ● ● ●
MZL 6 R0.5 L22 51 22 0.50 1.0 1.2 5.75 2.75 8.0 ● ● ● ●
6.0 MZL 6 R0.75 L22 51 22 0.75 1.5 1.5 5.75 2.75 8.0 ● ● ● SIM ... H6
MZL 6 R1.0 L22 51 22 1.00 2.0 2.5 5.75 2.75 8.0 ● ● ● ●
Order example: MZL 5 R0.5 L22 BXC ● Available.
See pages 40-54 for holders Other items available upon request
