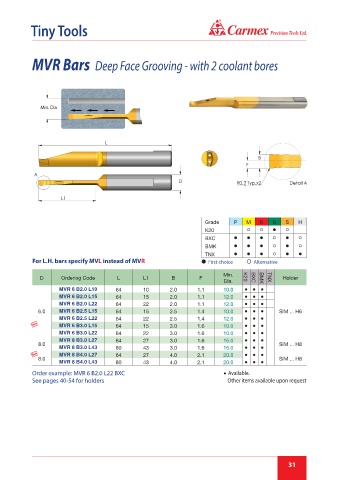

Page 31 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MVR Bars Deep Face Grooving - with 2 coolant bores

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MVL instead of MVR First choice Alternative

Min.
D Ordering Code L L1 B F K20 BXC BMK TNX Holder
Dia.
MVR 6 B2.0 L10 64 10 2.0 1.1 10.0 ● ● ●
MVR 6 B2.0 L15 64 15 2.0 1.1 12.0 ● ● ●
MVR 6 B2.0 L22 64 22 2.0 1.1 12.0 ● ● ●
6.0 MVR 6 B2.5 L15 64 15 2.5 1.4 10.0 ● ● ● SIM ... H6
MVR 6 B2.5 L22 64 22 2.5 1.4 12.0 ● ● ●
New MVR 6 B3.0 L15 64 15 3.0 1.6 10.0 ● ● ●
MVR 6 B3.0 L22 64 22 3.0 1.6 10.0 ● ● ●
MVR 8 B3.0 L27 64 27 3.0 1.6 15.0 ● ● ●
8.0 SIM ... H8
MVR 8 B3.0 L43 80 43 3.0 1.6 15.0 ● ● ●
New MVR 8 B4.0 L27 64 27 4.0 2.1 20.0 ● ● ●
8.0 SIM ... H8
MVR 8 B4.0 L43 80 43 4.0 2.1 20.0 ● ● ●
Order example: MVR 6 B2.0 L22 BXC ● Available.
See pages 40-54 for holders Other items available upon request

31
