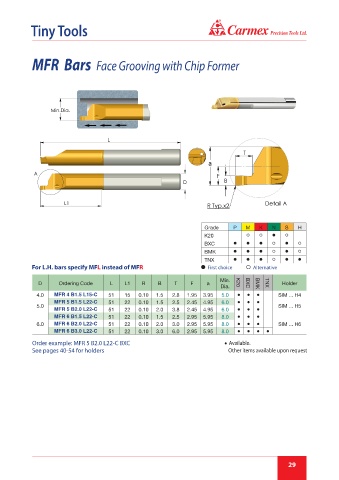

Page 29 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MFR Bars Face Grooving with Chip Former

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MFL instead of MFR First choice Alternative

Min.
D Ordering Code L L1 R B T F a K20 BXC BMK TNX Holder
Dia.
4.0 MFR 4 B1.5 L15-C 51 15 0.10 1.5 2.8 1.95 3.95 5.0 ● ● ● SIM ... H4
MFR 5 B1.5 L22-C 51 22 0.10 1.5 2.5 2.45 4.95 6.0 ● ● ●
5.0 SIM ... H5
MFR 5 B2.0 L22-C 51 22 0.10 2.0 3.8 2.45 4.95 6.0 ● ● ●
MFR 6 B1.5 L22-C 51 22 0.10 1.5 2.5 2.95 5.95 8.0 ● ● ●
6.0 MFR 6 B2.0 L22-C 51 22 0.10 2.0 3.0 2.95 5.95 8.0 ● ● ● SIM ... H6
MFR 6 B3.0 L22-C 51 22 0.10 3.0 6.0 2.95 5.95 8.0 ● ● ● ●
Order example: MFR 5 B2.0 L22-C BXC ● Available.
See pages 40-54 for holders Other items available upon request

29
