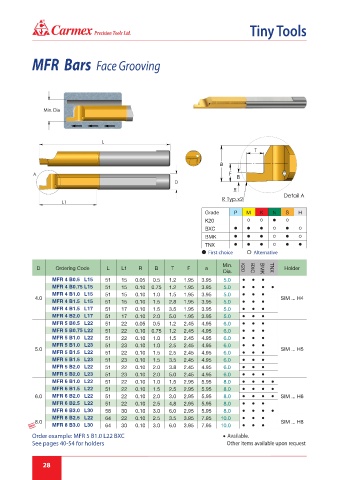

Page 28 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MFR Bars Face Grooving

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
First choice Alternative

Min.
D Ordering Code L L1 R B T F a K20 BXC BMK TNX Holder
Dia.
MFR 4 B0.5 L15 51 15 0.05 0.5 1.2 1.95 3.95 5.0 ● ● ●
MFR 4 B0.75 L15 51 15 0.10 0.75 1.2 1.95 3.95 5.0 ● ● ● ●
MFR 4 B1.0 L15 51 15 0.10 1.0 1.5 1.95 3.95 5.0 ● ● ●
4.0 SIM ... H4
MFR 4 B1.5 L15 51 15 0.10 1.5 2.8 1.95 3.95 5.0 ● ● ●
MFR 4 B1.5 L17 51 17 0.10 1.5 3.5 1.95 3.95 5.0 ● ● ●
MFR 4 B2.0 L17 51 17 0.10 2.0 5.0 1.95 3.95 5.0 ● ● ●
MFR 5 B0.5 L22 51 22 0.05 0.5 1.2 2.45 4.95 6.0 ● ● ●
MFR 5 B0.75 L22 51 22 0.10 0.75 1.2 2.45 4.95 6.0 ● ● ●
MFR 5 B1.0 L22 51 22 0.10 1.0 1.5 2.45 4.95 6.0 ● ● ●
MFR 5 B1.0 L23 51 23 0.10 1.0 2.5 2.45 4.95 6.0 ● ● ●
5.0 SIM ... H5
MFR 5 B1.5 L22 51 22 0.10 1.5 2.5 2.45 4.95 6.0 ● ● ●
MFR 5 B1.5 L23 51 23 0.10 1.5 3.5 2.45 4.95 6.0 ● ● ●
MFR 5 B2.0 L22 51 22 0.10 2.0 3.8 2.45 4.95 6.0 ● ● ●
MFR 5 B2.0 L23 51 23 0.10 2.0 5.0 2.45 4.95 6.0 ● ● ●
MFR 6 B1.0 L22 51 22 0.10 1.0 1.5 2.95 5.95 8.0 ● ● ● ●
MFR 6 B1.5 L22 51 22 0.10 1.5 2.5 2.95 5.95 8.0 ● ● ● ●
6.0 MFR 6 B2.0 L22 51 22 0.10 2.0 3.0 2.95 5.95 8.0 ● ● ● ● SIM ... H6
MFR 6 B2.5 L22 51 22 0.10 2.5 4.8 2.95 5.95 8.0 ● ● ●
MFR 6 B3.0 L30 58 30 0.10 3.0 6.0 2.95 5.95 8.0 ● ● ● ●
MFR 8 B2.5 L22 64 22 0.10 2.5 3.5 3.95 7.95 10.0 ● ● ●
8.0 SIM ... H8
New MFR 8 B3.0 L30 64 30 0.10 3.0 6.0 3.95 7.95 10.0 ● ● ●
Order example: MFR 5 B1.0 L22 BXC ● Available.
See pages 40-54 for holders Other items available upon request
