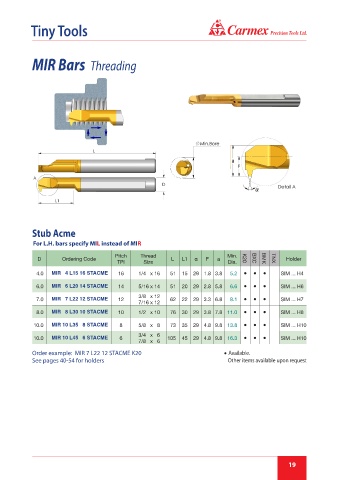

Page 19 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MIR Bars Threading

Stub Acme
For L.H. bars specify MIL instead of MIR

Pitch Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
TPI Size Dia.
4.0 MIR 4 L15 16 STACME 16 1/4 x 16 51 15 29 1.8 3.8 5.2 ● ● ● SIM ... H4
6.0 MIR 6 L20 14 STACME 14 5/16 x 14 51 20 29 2.8 5.8 6.6 ● ● ● SIM ... H6
3/8 x 12
7.0 MIR 7 L22 12 STACME 12 62 22 29 3.3 6.8 8.1 ● ● ● SIM ... H7
7/16 x 12
8.0 MIR 8 L30 10 STACME 10 1/2 x 10 76 30 29 3.8 7.8 11.0 ● ● ● SIM ... H8

10.0 MIR 10 L35 8 STACME 8 5/8 x 8 73 35 29 4.8 9.8 13.8 ● ● ● SIM ... H10
3/4 x 6
10.0 MIR 10 L45 6 STACME 6 105 45 29 4.8 9.8 16.3 ● ● ● SIM ... H10
7/8 x 6
Order example: MIR 7 L22 12 STACME K20 ● Available.
See pages 40-54 for holders Other items available upon request
