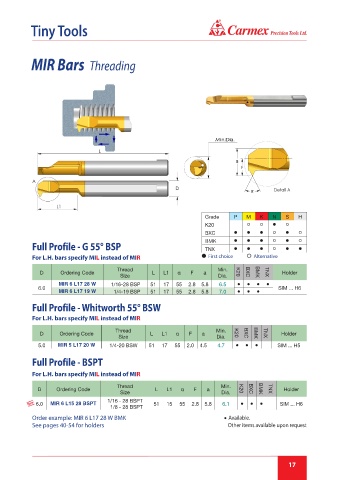

Tiny Tools

MIR Bars Threading

Grade P M K N S H
K20    
BXC      
Full Profile - G 55° BSP BMK      






TNX
For L.H. bars specify MIL instead of MIR First choice Alternative
Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
Size Dia.
MIR 6 L17 28 W 1/16-28 BSP 51 17 55 2.8 5.8 6.5 ● ● ● ●
6.0 SIM ... H6
MIR 6 L17 19 W 1/4-19 BSP 51 17 55 2.8 5.8 7.0 ● ● ●
Full Profile - Whitworth 55° BSW
For L.H. bars specify MIL instead of MIR

Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
Size Dia.
5.0 MIR 5 L17 20 W 1/4-20 BSW 51 17 55 2.0 4.5 4.7 ● ● ● SIM ... H5

Full Profile - BSPT

For L.H. bars specify MIL instead of MIR

Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
Size Dia.
New 6.0 MIR 6 L15 28 BSPT 1/16 - 28 BSPT 51 15 55 2.8 5.8 6.1 ● ● ● SIM ... H6
1/8 - 28 BSPT
Order example: MIR 6 L17 28 W BMK ● Available.
See pages 40-54 for holders Other items available upon request
