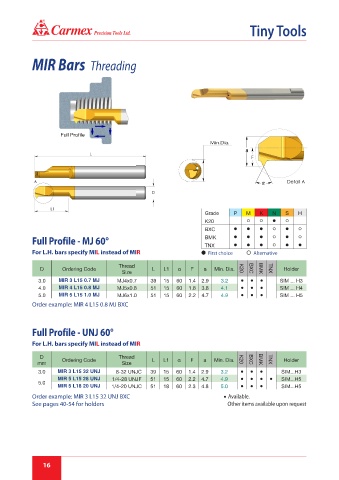

Page 16 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MIR Bars Threading

Full Profile

Grade P M K N S H
K20    
BXC      
Full Profile - MJ 60° BMK      
TNX      
For L.H. bars specify MIL instead of MIR First choice Alternative

Thread
D Ordering Code L L1 α F a Min. Dia. K20 BXC BMK TNX Holder
Size
3.0 MIR 3 L15 0.7 MJ MJ4x0.7 39 15 60 1.4 2.9 3.2 ● ● ● SIM ... H3
4.0 MIR 4 L15 0.8 MJ MJ5x0.8 51 15 60 1.8 3.8 4.1 ● ● ● SIM ... H4
5.0 MIR 5 L15 1.0 MJ MJ6x1.0 51 15 60 2.2 4.7 4.9 ● ● ● SIM ... H5
Order example: MIR 4 L15 0.8 MJ BXC

Full Profile - UNJ 60°

For L.H. bars specify MIL instead of MIR

D Thread
Ordering Code L L1 α F a Min. Dia. K20 BXC BMK TNX Holder
mm Size
3.0 MIR 3 L15 32 UNJ 8-32 UNJC 39 15 60 1.4 2.9 3.2 ● ● ● SIM...H3
MIR 5 L15 28 UNJ 1/4-28 UNJF 51 15 60 2.2 4.7 4.9 ● ● ● ● SIM...H5
5.0
MIR 5 L18 20 UNJ 1/4-20 UNJC 51 18 60 2.3 4.8 5.0 ● ● ● SIM...H5
Order example: MIR 3 L15 32 UNJ BXC ● Available.
See pages 40-54 for holders Other items available upon request
