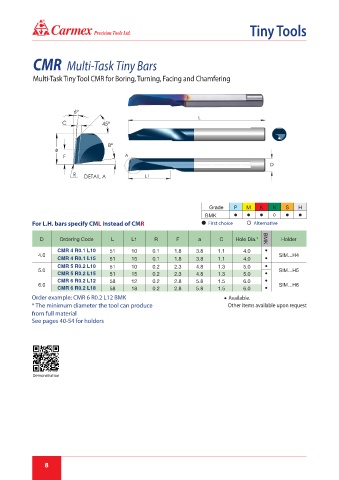

Page 8 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

CMR Multi-Task Tiny Bars

Multi-Task Tiny Tool CMR for Boring, Turning, Facing and Chamfering

Grade P M K N S H
BMK      
For L.H. bars specify CML instead of CMR First choice Alternative

D Ordering Code L L1 R F a C Hole Dia.* BMK Holder
CMR 4 R0.1 L10 51 10 0.1 1.8 3.8 1.1 4.0 
4.0 SIM...H4
CMR 4 R0.1 L15 51 15 0.1 1.8 3.8 1.1 4.0 
CMR 5 R0.2 L10 51 10 0.2 2.3 4.8 1.3 5.0 
5.0 SIM...H5
CMR 5 R0.2 L15 51 15 0.2 2.3 4.8 1.3 5.0 
CMR 6 R0.2 L12 58 12 0.2 2.8 5.8 1.5 6.0 
6.0 SIM...H6
CMR 6 R0.2 L18 58 18 0.2 2.8 5.8 1.5 6.0 
Order example: CMR 6 R0.2 L12 BMK ● Available.
* The minimum diameter the tool can produce Other items available upon request
from full material
See pages 40-54 for holders
