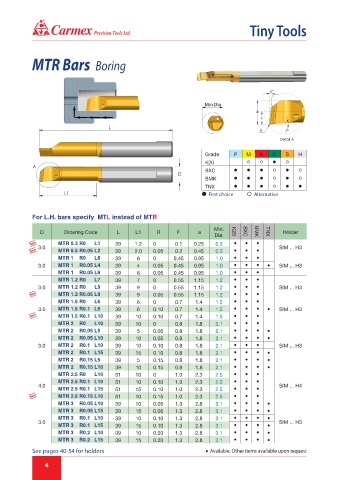

Page 4 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MTR Bars Boring

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
First choice Alternative

For L.H. bars specify MTL instead of MTR

Min.
D Ordering Code L L1 R F a K20 BXC BMK TNX Holder
Dia.
New MTR 0.3 R0 L1 39 1.2 0 0.1 0.25 0.3 ● ● ●
New 3.0 MTR 0.5 R0.05 L2 39 2.0 0.05 0.2 0.45 0.5 ● ● ● SIM ... H3
MTR 1 R0 L6 39 6 0 0.45 0.95 1.0 ● ● ●
3.0 MTR 1 R0.05 L4 39 4 0.05 0.45 0.95 1.0 ● ● ● ● SIM ... H3
MTR 1 R0.05 L6 39 6 0.05 0.45 0.95 1.0 ● ● ●
MTR 1.2 R0 L7 39 7 0 0.55 1.15 1.2 ● ● ●
3.0 MTR 1.2 R0 L9 39 9 0 0.55 1.15 1.2 ● ● ● SIM ... H3
New MTR 1.2 R0.05 L9 39 9 0.05 0.55 1.15 1.2 ● ● ●
MTR 1.5 R0 L6 39 6 0 0.7 1.4 1.5 ● ● ●
3.0 MTR 1.5 R0.1 L6 39 6 0.10 0.7 1.4 1.5 ● ● ● ● SIM ... H3
New MTR 1.5 R0.1 L10 39 10 0.10 0.7 1.4 1.5 ● ● ●
MTR 2 R0 L10 39 10 0 0.8 1.8 2.1 ● ● ●
MTR 2 R0.05 L5 39 5 0.05 0.8 1.8 2.1 ● ● ● ●
MTR 2 R0.05 L10 39 10 0.05 0.8 1.8 2.1 ● ● ● ●
3.0 MTR 2 R0.1 L10 39 10 0.10 0.8 1.8 2.1 ● ● ● SIM ... H3
MTR 2 R0.1 L15 39 15 0.10 0.8 1.8 2.1 ● ● ● ●
MTR 2 R0.15 L5 39 5 0.15 0.8 1.8 2.1 ● ● ● ●
MTR 2 R0.15 L10 39 10 0.15 0.8 1.8 2.1 ● ● ● ●
MTR 2.5 R0 L10 51 10 0 1.0 2.3 2.5 ● ● ●
MTR 2.5 R0.1 L10 51 10 0.10 1.0 2.3 2.5 ● ● ●
4.0 SIM ... H4
MTR 2.5 R0.1 L15 51 15 0.10 1.0 2.3 2.5 ● ● ●
New MTR 2.5 R0.15 L10 51 10 0.15 1.0 2.3 2.5 ● ● ●
MTR 3 R0.05 L10 39 10 0.05 1.3 2.8 3.1 ● ● ● ●
MTR 3 R0.05 L15 39 15 0.05 1.3 2.8 3.1 ● ● ● ●
MTR 3 R0.1 L10 39 10 0.10 1.3 2.8 3.1 ● ● ● ●
3.0 SIM ... H3
MTR 3 R0.1 L15 39 15 0.10 1.3 2.8 3.1 ● ● ● ●
MTR 3 R0.2 L10 39 10 0.20 1.3 2.8 3.1 ● ● ● ●
MTR 3 R0.2 L15 39 15 0.20 1.3 2.8 3.1 ● ● ● ●
See pages 40-54 for holders ● Available. Other items available upon request

4
