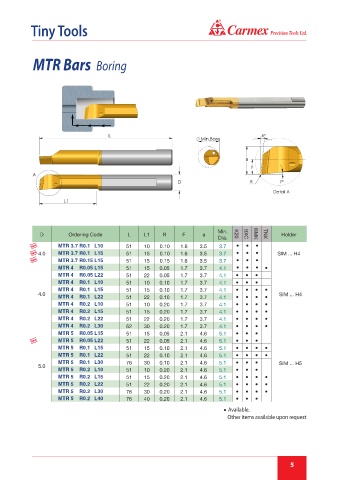

Page 5 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MTR Bars Boring

Min.
D Ordering Code L L1 R F a K20 BXC BMK TNX Holder
Dia.
New MTR 3.7 R0.1 L10 51 10 0.10 1.6 3.5 3.7 ● ● ●
New 4.0 MTR 3.7 R0.1 L15 51 15 0.10 1.6 3.5 3.7 ● ● ● SIM ... H4
New MTR 3.7 R0.15 L15 51 15 0.15 1.6 3.5 3.7 ● ● ●
MTR 4 R0.05 L15 51 15 0.05 1.7 3.7 4.1 ● ● ● ●
MTR 4 R0.05 L22 51 22 0.05 1.7 3.7 4.1 ● ● ●
MTR 4 R0.1 L10 51 10 0.10 1.7 3.7 4.1 ● ● ●
MTR 4 R0.1 L15 51 15 0.10 1.7 3.7 4.1 ● ● ● ●
4.0 SIM ... H4
MTR 4 R0.1 L22 51 22 0.10 1.7 3.7 4.1 ● ● ● ●
MTR 4 R0.2 L10 51 10 0.20 1.7 3.7 4.1 ● ● ● ●
MTR 4 R0.2 L15 51 15 0.20 1.7 3.7 4.1 ● ● ● ●
MTR 4 R0.2 L22 51 22 0.20 1.7 3.7 4.1 ● ● ● ●
MTR 4 R0.2 L30 62 30 0.20 1.7 3.7 4.1 ● ● ● ●
MTR 5 R0.05 L15 51 15 0.05 2.1 4.6 5.1 ● ● ●
New MTR 5 R0.05 L22 51 22 0.05 2.1 4.6 5.1 ● ● ●
MTR 5 R0.1 L15 51 15 0.10 2.1 4.6 5.1 ● ● ● ●
MTR 5 R0.1 L22 51 22 0.10 2.1 4.6 5.1 ● ● ● ●
MTR 5 R0.1 L30 76 30 0.10 2.1 4.6 5.1 ● ● ● SIM ... H5
5.0
MTR 5 R0.2 L10 51 10 0.20 2.1 4.6 5.1 ● ● ●
MTR 5 R0.2 L15 51 15 0.20 2.1 4.6 5.1 ● ● ● ●
MTR 5 R0.2 L22 51 22 0.20 2.1 4.6 5.1 ● ● ● ●
MTR 5 R0.2 L30 76 30 0.20 2.1 4.6 5.1 ● ● ● ●
MTR 5 R0.2 L40 76 40 0.20 2.1 4.6 5.1 ● ● ●
● Available.
Other items available upon request
