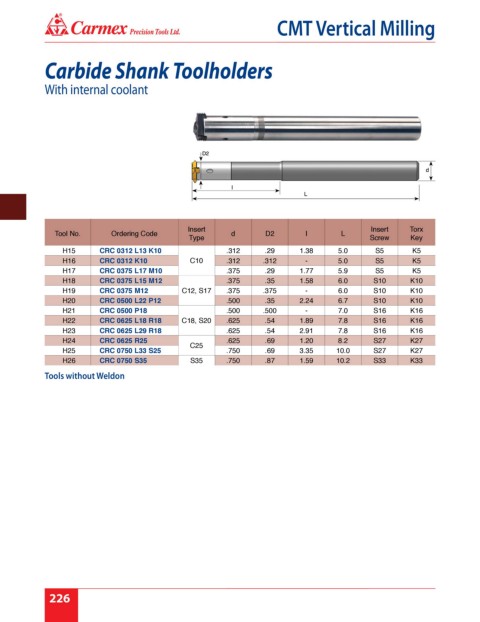

Page 232 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Carbide Shank Toolholders

With internal coolant

Insert Insert Torx
Tool No. Ordering Code d D2 I L
Type Screw Key
H15 CRC 0312 L13 K10 .312 .29 1.38 5.0 S5 K5
H16 CRC 0312 K10 C10 .312 .312 - 5.0 S5 K5
H17 CRC 0375 L17 M10 .375 .29 1.77 5.9 S5 K5
H18 CRC 0375 L15 M12 .375 .35 1.58 6.0 S10 K10
H19 CRC 0375 M12 C12, S17 .375 .375 - 6.0 S10 K10
H20 CRC 0500 L22 P12 .500 .35 2.24 6.7 S10 K10
H21 CRC 0500 P18 .500 .500 - 7.0 S16 K16
H22 CRC 0625 L18 R18 C18, S20 .625 .54 1.89 7.8 S16 K16
H23 CRC 0625 L29 R18 .625 .54 2.91 7.8 S16 K16
H24 CRC 0625 R25 .625 .69 1.20 8.2 S27 K27
C25
H25 CRC 0750 L33 S25 .750 .69 3.35 10.0 S27 K27
H26 CRC 0750 S35 S35 .750 .87 1.59 10.2 S33 K33
Tools without Weldon
