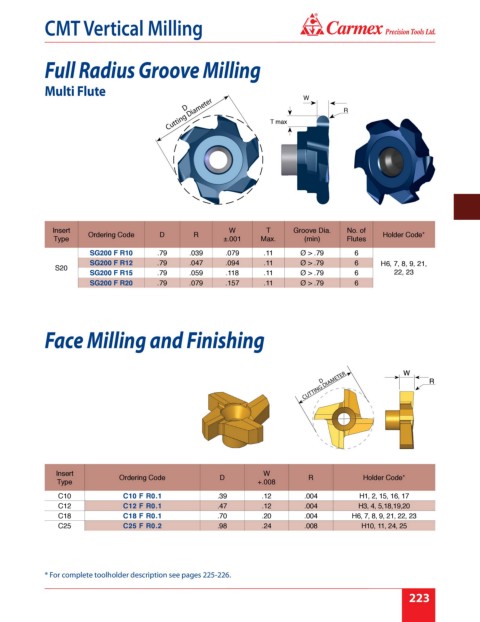

Page 229 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Full Radius Groove Milling

Multi Flute W
Cutting Diameter T max R
D

Insert Ordering Code D R W T Groove Dia. No. of Holder Code*
Type ±.001 Max. (min) Flutes
SG200 F R10 .79 .039 .079 .11 Ø > .79 6
SG200 F R12 .79 .047 .094 .11 Ø > .79 6 H6, 7, 8, 9, 21,
S20
SG200 F R15 .79 .059 .118 .11 Ø > .79 6 22, 23
SG200 F R20 .79 .079 .157 .11 Ø > .79 6

Face Milling and Finishing

CUTTING DIAMETER
D

Insert W
Ordering Code D R Holder Code*
Type +.008
C10 C10 F R0.1 .39 .12 .004 H1, 2, 15, 16, 17
C12 C12 F R0.1 .47 .12 .004 H3, 4, 5,18,19,20
C18 C18 F R0.1 .70 .20 .004 H6, 7, 8, 9, 21, 22, 23
C25 C25 F R0.2 .98 .24 .008 H10, 11, 24, 25

* For complete toolholder description see pages 225-226.

223
