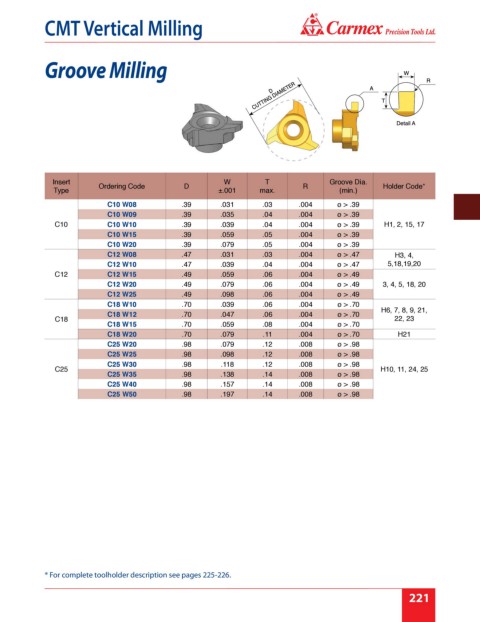

Page 227 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Groove Milling

Insert W T Groove Dia.
Ordering Code D R Holder Code*
Type ±.001 max. (min.)
C10 W08 .39 .031 .03 .004 ø > .39
C10 W09 .39 .035 .04 .004 ø > .39
C10 C10 W10 .39 .039 .04 .004 ø > .39 H1, 2, 15, 17
C10 W15 .39 .059 .05 .004 ø > .39
C10 W20 .39 .079 .05 .004 ø > .39
C12 W08 .47 .031 .03 .004 ø > .47 H3, 4,
C12 W10 .47 .039 .04 .004 ø > .47 5,18,19,20
C12 C12 W15 .49 .059 .06 .004 ø > .49
C12 W20 .49 .079 .06 .004 ø > .49 3, 4, 5, 18, 20
C12 W25 .49 .098 .06 .004 ø > .49
C18 W10 .70 .039 .06 .004 ø > .70
H6, 7, 8, 9, 21,
C18 W12 .70 .047 .06 .004 ø > .70
C18 22, 23
C18 W15 .70 .059 .08 .004 ø > .70
C18 W20 .70 .079 .11 .004 ø > .70 H21
C25 W20 .98 .079 .12 .008 ø > .98
C25 W25 .98 .098 .12 .008 ø > .98
C25 W30 .98 .118 .12 .008 ø > .98
C25 H10, 11, 24, 25
C25 W35 .98 .138 .14 .008 ø > .98
C25 W40 .98 .157 .14 .008 ø > .98
C25 W50 .98 .197 .14 .008 ø > .98

* For complete toolholder description see pages 225-226.
