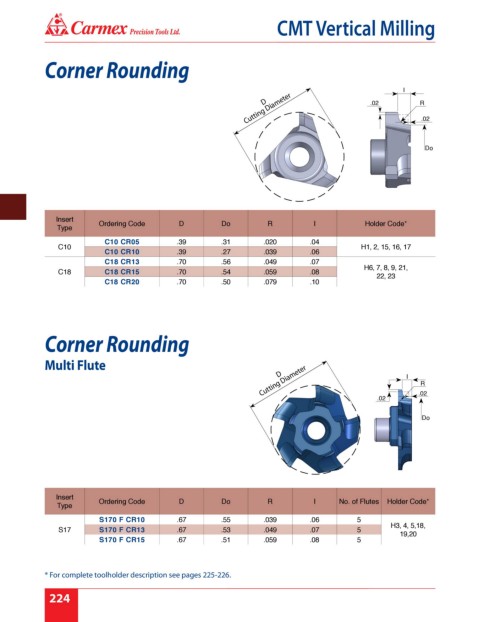

CMT Vertical Milling
Corner Rounding
Cutting Diameter .02 I R .02
D
Do
Insert Ordering Code D Do R I Holder Code*
Type
C10 CR05 .39 .31 .020 .04
C10 H1, 2, 15, 16, 17
C10 CR10 .39 .27 .039 .06
C18 CR13 .70 .56 .049 .07
H6, 7, 8, 9, 21,
C18 C18 CR15 .70 .54 .059 .08
22, 23
C18 CR20 .70 .50 .079 .10
Corner Rounding
Multi Flute
Cutting Diameter I R
Cutting Diameter
D
D
.02 .02
Do
Insert Ordering Code D Do R I No. of Flutes Holder Code*
Type
S170 F CR10 .67 .55 .039 .06 5
H3, 4, 5,18,
S17 S170 F CR13 .67 .53 .049 .07 5
19,20
S170 F CR15 .67 .51 .059 .08 5
* For complete toolholder description see pages 225-226.
