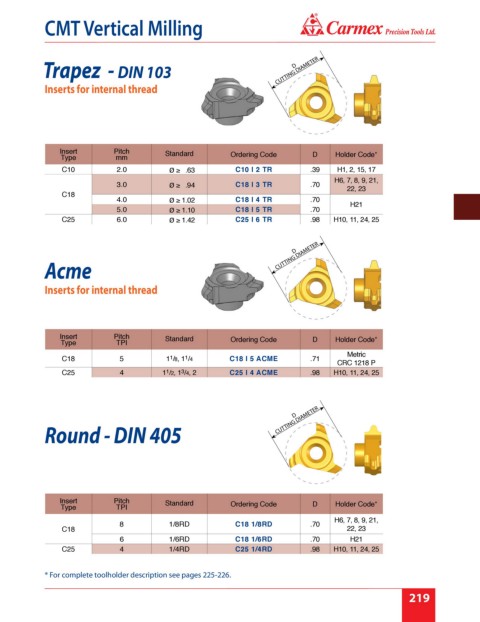

CMT Vertical Milling

Trapez - DIN 103 CUTTING DIAMETER
D
Inserts for internal thread

Insert Pitch Standard Ordering Code D Holder Code*
Type mm
C10 2.0 ø ≥ .63 C10 I 2 TR .39 H1, 2, 15, 17
H6, 7, 8, 9, 21,
3.0 ø ≥ .94 C18 I 3 TR .70
22, 23
C18
4.0 ø ≥ 1.02 C18 I 4 TR .70
H21
5.0 ø ≥ 1.10 C18 I 5 TR .70
C25 6.0 ø ≥ 1.42 C25 I 6 TR .98 H10, 11, 24, 25

CUTTING DIAMETER
D
Acme

Inserts for internal thread

Insert Pitch Standard Ordering Code D Holder Code*
Type TPI
Metric
1
C18 5 1 /8, 1 /4 C18 I 5 ACME .71
1
CRC 1218 P
3
C25 4 1 /2, 1 /4, 2 C25 I 4 ACME .98 H10, 11, 24, 25
1
CUTTING DIAMETER
D
Round - DIN 405

Insert Pitch Standard Ordering Code D Holder Code*
Type TPI
H6, 7, 8, 9, 21,
8 1/8RD C18 1/8RD .70
C18 22, 23
6 1/6RD C18 1/6RD .70 H21
C25 4 1/4RD C25 1/4RD .98 H10, 11, 24, 25

* For complete toolholder description see pages 225-226.

219
