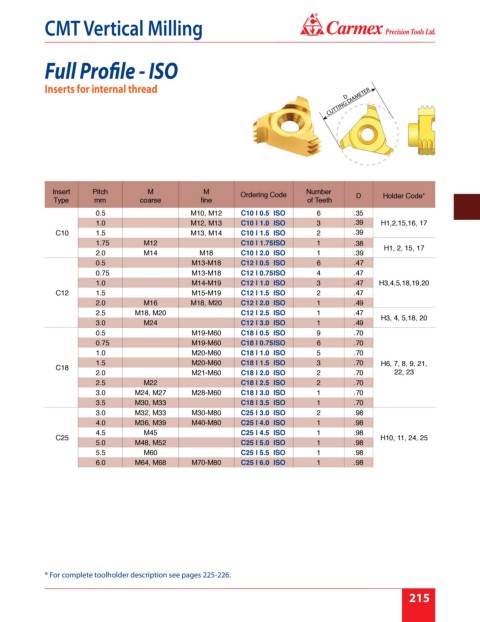

Page 221 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Full Profile - ISO

Inserts for internal thread
CUTTING DIAMETER
D

Insert Pitch M M Number
Ordering Code D Holder Code*
Type mm coarse fine of Teeth
0.5 M10, M12 C10 I 0.5 ISO 6 .35
1.0 M12, M13 C10 I 1.0 ISO 3 .39 H1,2,15,16, 17
C10 1.5 M13, M14 C10 I 1.5 ISO 2 .39
1.75 M12 C10 I 1.75ISO 1 .38
H1, 2, 15, 17
2.0 M14 M18 C10 I 2.0 ISO 1 .39
0.5 M13-M18 C12 I 0.5 ISO 6 .47
0.75 M13-M18 C12 I 0.75ISO 4 .47
1.0 M14-M19 C12 I 1.0 ISO 3 .47 H3,4,5,18,19,20
C12 1.5 M15-M19 C12 I 1.5 ISO 2 .47
2.0 M16 M18, M20 C12 I 2.0 ISO 1 .49
2.5 M18, M20 C12 I 2.5 ISO 1 .47
H3, 4, 5,18, 20
3.0 M24 C12 I 3.0 ISO 1 .49
0.5 M19-M60 C18 I 0.5 ISO 9 .70
0.75 M19-M60 C18 I 0.75ISO 6 .70
1.0 M20-M60 C18 I 1.0 ISO 5 .70
1.5 M20-M60 C18 I 1.5 ISO 3 .70 H6, 7, 8, 9, 21,
C18
2.0 M21-M60 C18 I 2.0 ISO 2 .70 22, 23
2.5 M22 C18 I 2.5 ISO 2 .70
3.0 M24, M27 M28-M60 C18 I 3.0 ISO 1 .70
3.5 M30, M33 C18 I 3.5 ISO 1 .70
3.0 M32, M33 M30-M80 C25 I 3.0 ISO 2 .98
4.0 M36, M39 M40-M80 C25 I 4.0 ISO 1 .98
4.5 M45 C25 I 4.5 ISO 1 .98
C25 H10, 11, 24, 25
5.0 M48, M52 C25 I 5.0 ISO 1 .98
5.5 M60 C25 I 5.5 ISO 1 .98
6.0 M64, M68 M70-M80 C25 I 6.0 ISO 1 .98

* For complete toolholder description see pages 225-226.
