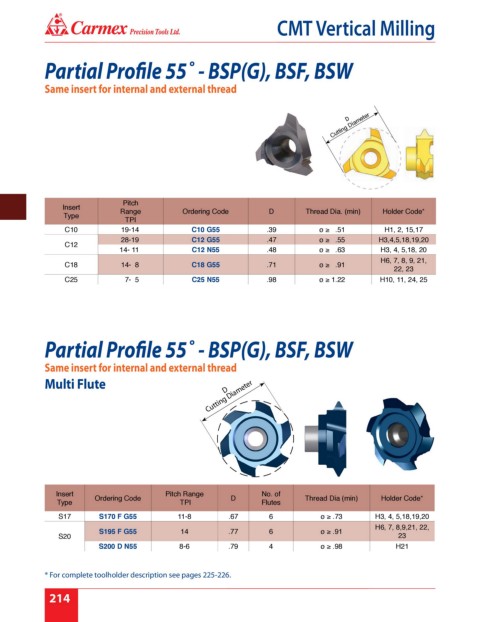

CMT Vertical Milling

Partial Profile 55˚ - BSP(G), BSF, BSW

Same insert for internal and external thread

Cutting Diameter

Pitch
Insert
Range Ordering Code D Thread Dia. (min) Holder Code*
Type
TPI
C10 19-14 C10 G55 .39 ø ≥ .51 H1, 2, 15,17
28-19 C12 G55 .47 ø ≥ .55 H3,4,5,18,19,20
C12
14- 11 C12 N55 .48 ø ≥ .63 H3, 4, 5,18, 20
H6, 7, 8, 9, 21,
C18 14- 8 C18 G55 .71 ø ≥ .91
22, 23
C25 7- 5 C25 N55 .98 ø ≥ 1.22 H10, 11, 24, 25

Partial Profile 55˚ - BSP(G), BSF, BSW

Same insert for internal and external thread

Multi Flute
Cutting Diameter
D

Insert Ordering Code Pitch Range D No. of Thread Dia (min) Holder Code*
Type TPI Flutes
S17 S170 F G55 11-8 .67 6 ø ≥ .73 H3, 4, 5,18,19,20
H6, 7, 8,9,21, 22,
S195 F G55 14 .77 6 ø ≥ .91
S20 23
S200 D N55 8-6 .79 4 ø ≥ .98 H21

* For complete toolholder description see pages 225-226.
