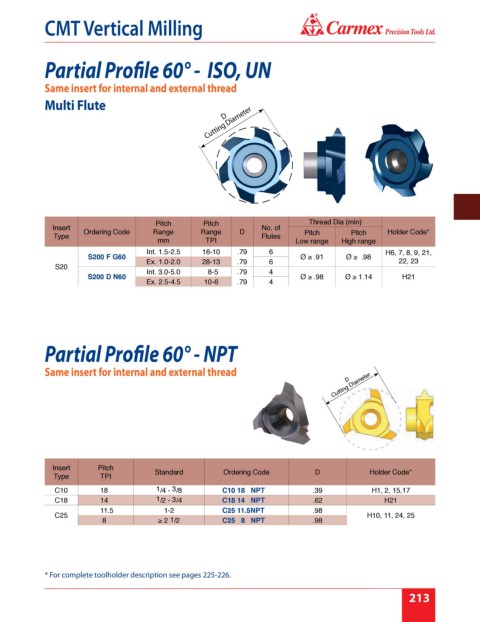

CMT Vertical Milling

Partial Profile 60° - ISO, UN

Same insert for internal and external thread
Multi Flute
Cutting Diameter
D

Pitch Pitch Thread Dia (min)
Insert No. of
Ordering Code Range Range D Pitch Pitch Holder Code*
Type Flutes
mm TPI Low range High range
Int. 1.5-2.5 16-10 .79 6 H6, 7, 8, 9, 21,
S200 F G60 Ø ≥ .91 Ø ≥ .98
Ex. 1.0-2.0 28-13 .79 6 22, 23
S20
Int. 3.0-5.0 8-5 .79 4
S200 D N60 Ø ≥ .98 Ø ≥ 1.14 H21
Ex. 2.5-4.5 10-6 .79 4

Partial Profile 60° - NPT

Same insert for internal and external thread
Cutting Diameter

Insert Pitch
Standard Ordering Code D Holder Code*
Type TPI
C10 18 1 /4 - 3 /8 C10 18 NPT .39 H1, 2, 15,17
C18 14 1 /2 - 3/4 C18 14 NPT .62 H21
11.5 1-2 C25 11.5NPT .98
C25 H10, 11, 24, 25
8 ≥ 2 1/2 C25 8 NPT .98

* For complete toolholder description see pages 225-226.
