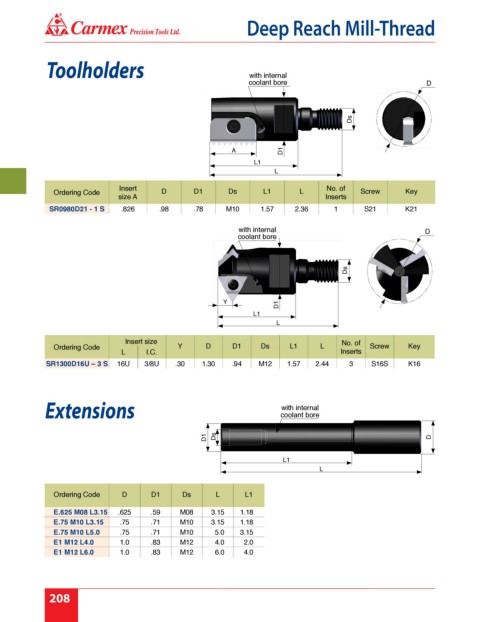

Page 214 - Carmex - Inch Catalog 2018-19 Rev. B

®
Deep Reach Mill-Thread

Toolholders

with internal
coolant bore D

Ds

A D1
L1
L

Insert No. of
Ordering Code D D1 Ds L1 L Screw Key
size A Inserts
SR0980D21 - 1 S .826 .98 .78 M10 1.57 2.36 1 S21 K21

with internal D
coolant bore

Ds

Y
D1
L1
L

Insert size No. of
Ordering Code Y D D1 Ds L1 L Screw Key
L I.C. Inserts
SR1300D16U – 3 S 16U 3/8U .30 1.30 .94 M12 1.57 2.44 3 S16S K16

Extensions coolant bore
with internal

D1 Ds D

L1
L

Ordering Code D D1 Ds L L1

E.625 M08 L3.15 .625 .59 M08 3.15 1.18
E.75 M10 L3.15 .75 .71 M10 3.15 1.18
E.75 M10 L5.0 .75 .71 M10 5.0 3.15
E1 M12 L4.0 1.0 .83 M12 4.0 2.0
E1 M12 L6.0 1.0 .83 M12 6.0 4.0
