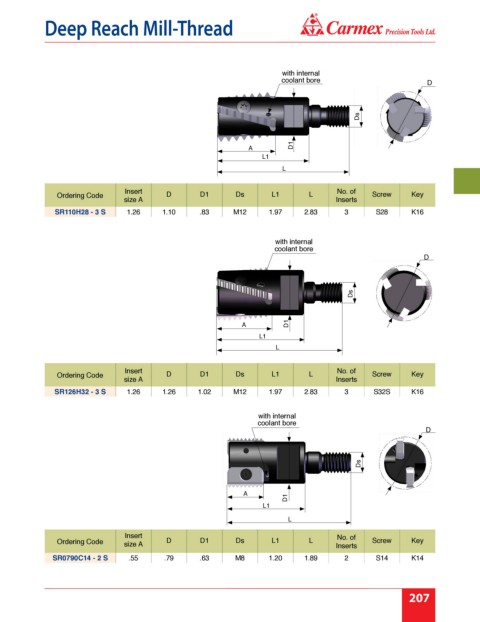

Deep Reach Mill-Thread
with internal
coolant bore D
Ds
D1
A
L1
L
Insert No. of
Ordering Code D D1 Ds L1 L Screw Key
size A Inserts
SR110H28 - 3 S 1.26 1.10 .83 M12 1.97 2.83 3 S28 K16
with internal
coolant bore
D
Ds
A D1
L1
L
Insert No. of
Ordering Code D D1 Ds L1 L Screw Key
size A Inserts
SR126H32 - 3 S 1.26 1.26 1.02 M12 1.97 2.83 3 S32S K16
with internal
coolant bore
D
Ds
A
D1
L1
L
Insert No. of
Ordering Code D D1 Ds L1 L Screw Key
size A Inserts
SR0790C14 - 2 S .55 .79 .63 M8 1.20 1.89 2 S14 K14
