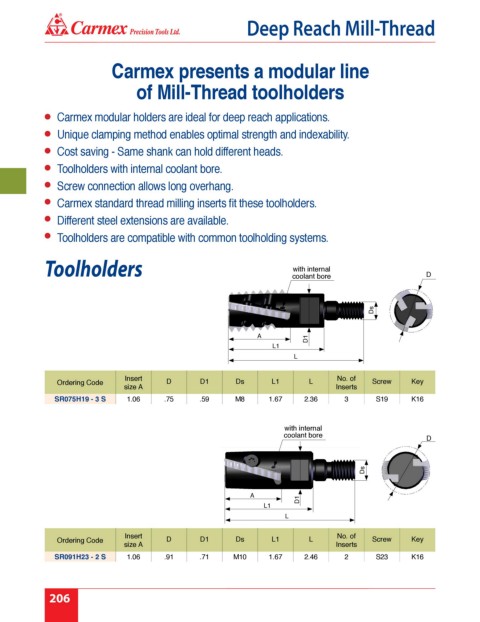

Deep Reach Mill-Thread

Carmex presents a modular line

of Mill-Thread toolholders

Carmex modular holders are ideal for deep reach applications.

Unique clamping method enables optimal strength and indexability.

Cost saving - Same shank can hold different heads.
Toolholders with internal coolant bore.

Screw connection allows long overhang.

Carmex standard thread milling inserts fit these toolholders.
Different steel extensions are available.

Toolholders are compatible with common toolholding systems.

Toolholders coolant bore D
with internal

Ds

A
D1
L1
L

Insert No. of
Ordering Code D D1 Ds L1 L Screw Key
size A Inserts
SR075H19 - 3 S 1.06 .75 .59 M8 1.67 2.36 3 S19 K16

with internal
coolant bore
D

Ds

A
D1
L1
L

Insert No. of
Ordering Code D D1 Ds L1 L Screw Key
size A Inserts
SR091H23 - 2 S 1.06 .91 .71 M10 1.67 2.46 2 S23 K16
