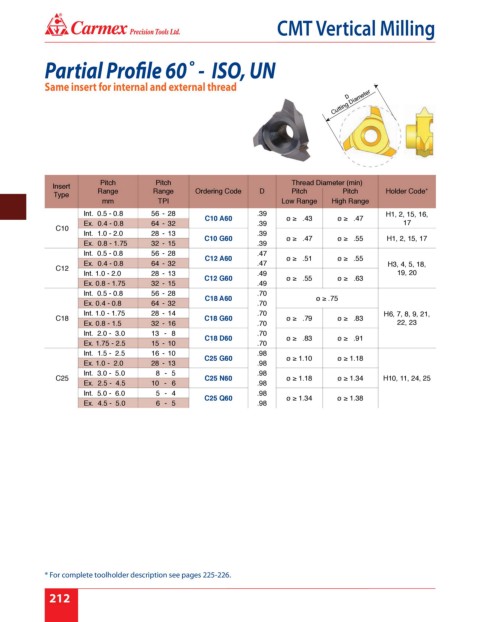

Page 218 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Partial Profile 60˚ - ISO, UN

Same insert for internal and external thread
Cutting Diameter

Pitch Pitch Thread Diameter (min)
Insert
Type Range Range Ordering Code D Pitch Pitch Holder Code*
mm TPI Low Range High Range
Int. 0.5 - 0.8 56 - 28 .39 H1, 2, 15, 16,
C10 A60 ø ≥ .43 ø ≥ .47
Ex. 0.4 - 0.8 64 - 32 .39 17
C10
Int. 1.0 - 2.0 28 - 13 .39
C10 G60 ø ≥ .47 ø ≥ .55 H1, 2, 15, 17
Ex. 0.8 - 1.75 32 - 15 .39
Int. 0.5 - 0.8 56 - 28 .47
C12 A60 ø ≥ .51 ø ≥ .55
Ex. 0.4 - 0.8 64 - 32 .47 H3, 4, 5, 18,
C12
Int. 1.0 - 2.0 28 - 13 .49 19, 20
C12 G60 ø ≥ .55 ø ≥ .63
Ex. 0.8 - 1.75 32 - 15 .49
Int. 0.5 - 0.8 56 - 28 .70
C18 A60 ø ≥ .75
Ex. 0.4 - 0.8 64 - 32 .70
Int. 1.0 - 1.75 28 - 14 .70 H6, 7, 8, 9, 21,
C18 C18 G60 ø ≥ .79 ø ≥ .83
Ex. 0.8 - 1.5 32 - 16 .70 22, 23
Int. 2.0 - 3.0 13 - 8 .70
C18 D60 ø ≥ .83 ø ≥ .91
Ex. 1.75 - 2.5 15 - 10 .70
Int. 1.5 - 2.5 16 - 10 .98
C25 G60 ø ≥ 1.10 ø ≥ 1.18
Ex. 1.0 - 2.0 28 - 13 .98
Int. 3.0 - 5.0 8 - 5 .98
C25 C25 N60 ø ≥ 1.18 ø ≥ 1.34 H10, 11, 24, 25
Ex. 2.5 - 4.5 10 - 6 .98
Int. 5.0 - 6.0 5 - 4 .98
C25 Q60 ø ≥ 1.34 ø ≥ 1.38
Ex. 4.5 - 5.0 6 - 5 .98

* For complete toolholder description see pages 225-226.
