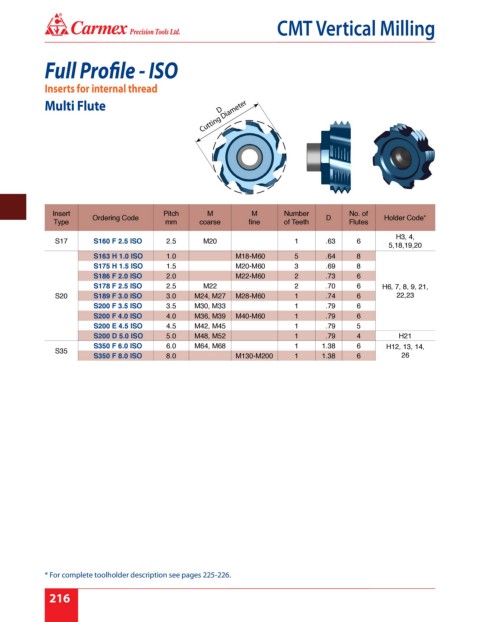

Page 222 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Full Profile - ISO

Inserts for internal thread
Cutting Diameter
Multi Flute D

Insert Pitch M M Number No. of
Ordering Code D Holder Code*
Type mm coarse fine of Teeth Flutes
H3, 4,
S17 S160 F 2.5 ISO 2.5 M20 1 .63 6
5,18,19,20
S163 H 1.0 ISO 1.0 M18-M60 5 .64 8
S175 H 1.5 ISO 1.5 M20-M60 3 .69 8
S186 F 2.0 ISO 2.0 M22-M60 2 .73 6
S178 F 2.5 ISO 2.5 M22 2 .70 6 H6, 7, 8, 9, 21,
S20 S189 F 3.0 ISO 3.0 M24, M27 M28-M60 1 .74 6 22,23
S200 F 3.5 ISO 3.5 M30, M33 1 .79 6
S200 F 4.0 ISO 4.0 M36, M39 M40-M60 1 .79 6
S200 E 4.5 ISO 4.5 M42, M45 1 .79 5
S200 D 5.0 ISO 5.0 M48, M52 1 .79 4 H21
S350 F 6.0 ISO 6.0 M64, M68 1 1.38 6 H12, 13, 14,
S35
S350 F 8.0 ISO 8.0 M130-M200 1 1.38 6 26

* For complete toolholder description see pages 225-226.
