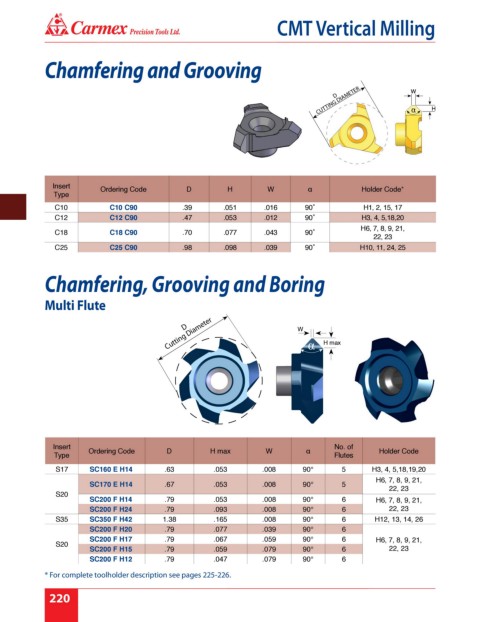

Page 226 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Chamfering and Grooving

CUTTING DIAMETER
D

Insert
Ordering Code D H W α Holder Code*
Type
C10 C10 C90 .39 .051 .016 90˚ H1, 2, 15, 17
C12 C12 C90 .47 .053 .012 90˚ H3, 4, 5,18,20
H6, 7, 8, 9, 21,
C18 C18 C90 .70 .077 .043 90˚
22, 23
C25 C25 C90 .98 .098 .039 90˚ H10, 11, 24, 25

Chamfering, Grooving and Boring

Multi Flute

Cutting Diameter W H max
D

Insert No. of
Ordering Code D H max W α Holder Code
Type Flutes
S17 SC160 E H14 .63 .053 .008 90° 5 H3, 4, 5,18,19,20
H6, 7, 8, 9, 21,
SC170 E H14 .67 .053 .008 90° 5
22, 23
S20
SC200 F H14 .79 .053 .008 90° 6 H6, 7, 8, 9, 21,
SC200 F H24 .79 .093 .008 90° 6 22, 23
S35 SC350 F H42 1.38 .165 .008 90° 6 H12, 13, 14, 26
SC200 F H20 .79 .077 .039 90° 6
SC200 F H17 .79 .067 .059 90° 6 H6, 7, 8, 9, 21,
S20
SC200 F H15 .79 .059 .079 90° 6 22, 23
SC200 F H12 .79 .047 .079 90° 6
* For complete toolholder description see pages 225-226.
