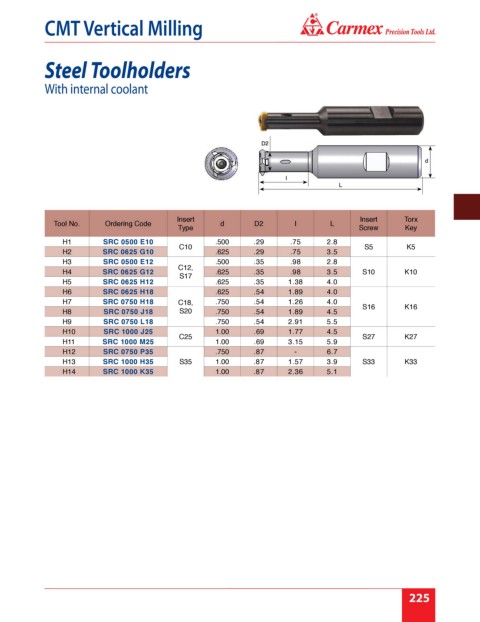

CMT Vertical Milling

Steel Toolholders

With internal coolant

Insert Insert Torx
Tool No. Ordering Code d D2 I L
Type Screw Key
H1 SRC 0500 E10 .500 .29 .75 2.8
C10 S5 K5
H2 SRC 0625 G10 .625 .29 .75 3.5
H3 SRC 0500 E12 .500 .35 .98 2.8
C12,
H4 SRC 0625 G12 .625 .35 .98 3.5 S10 K10
S17
H5 SRC 0625 H12 .625 .35 1.38 4.0
H6 SRC 0625 H18 .625 .54 1.89 4.0
H7 SRC 0750 H18 C18, .750 .54 1.26 4.0
S16 K16
H8 SRC 0750 J18 S20 .750 .54 1.89 4.5
H9 SRC 0750 L18 .750 .54 2.91 5.5
H10 SRC 1000 J25 1.00 .69 1.77 4.5
C25 S27 K27
H11 SRC 1000 M25 1.00 .69 3.15 5.9
H12 SRC 0750 P35 .750 .87 - 6.7
H13 SRC 1000 H35 S35 1.00 .87 1.57 3.9 S33 K33
H14 SRC 1000 K35 1.00 .87 2.36 5.1

225
