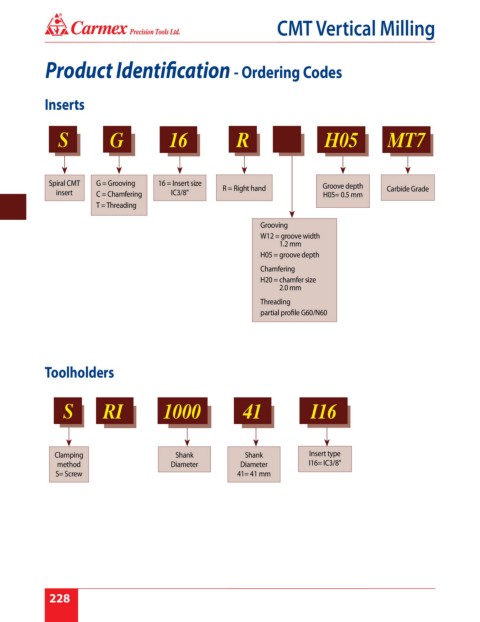

CMT Vertical Milling
Product Identification - Ordering Codes
Inserts
S G 16 R H05 MT7
Spiral CMT G = Grooving 16 = Insert size R = Right hand Groove depth
insert C = Chamfering IC3/8" H05= 0.5 mm Carbide Grade
T = Threading
Grooving
W12 = groove width
1.2 mm
H05 = groove depth
Chamfering
H20 = chamfer size
2.0 mm
Threading
partial profile G60/N60
Toolholders
S RI 1000 41 I16
Clamping Shank Shank Insert type
method Diameter Diameter I16= IC3/8"
S= Screw 41= 41 mm
