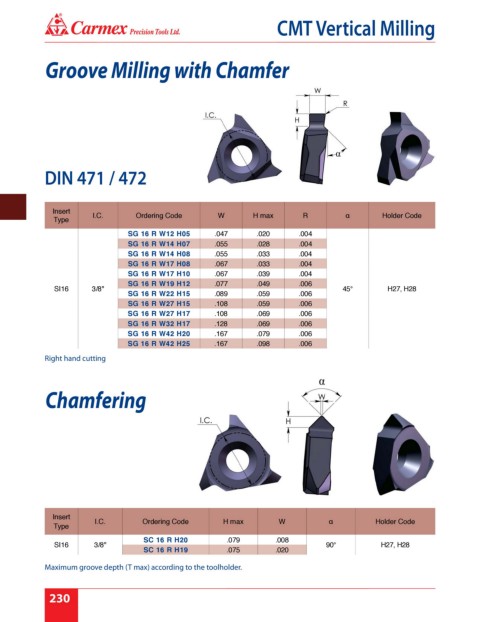

Page 236 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Groove Milling with Chamfer

DIN 471 / 472

Insert I.C. Ordering Code W H max R α Holder Code
Type
SG 16 R W12 H05 .047 .020 .004
SG 16 R W14 H07 .055 .028 .004
SG 16 R W14 H08 .055 .033 .004
SG 16 R W17 H08 .067 .033 .004
SG 16 R W17 H10 .067 .039 .004
SG 16 R W19 H12 .077 .049 .006
SI16 3/8" 45° H27, H28
SG 16 R W22 H15 .089 .059 .006
SG 16 R W27 H15 .108 .059 .006
SG 16 R W27 H17 .108 .069 .006
SG 16 R W32 H17 .128 .069 .006
SG 16 R W42 H20 .167 .079 .006
SG 16 R W42 H25 .167 .098 .006
Right hand cutting

Chamfering

Insert
I.C. Ordering Code H max W α Holder Code
Type
SC 16 R H20 .079 .008
SI16 3/8" 90° H27, H28
SC 16 R H19 .075 .020
Maximum groove depth (T max) according to the toolholder.
