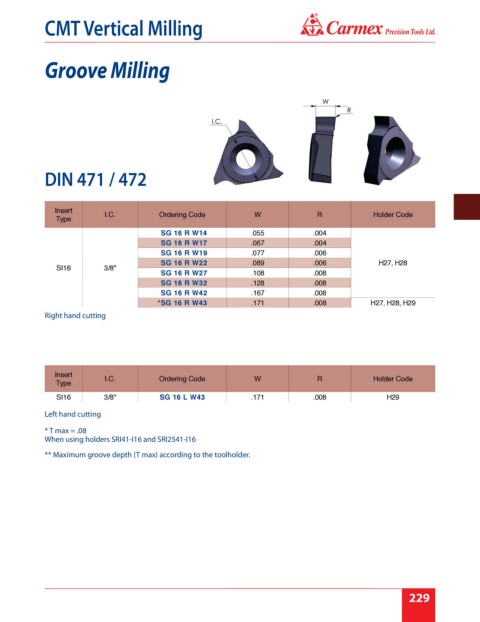

CMT Vertical Milling

Groove Milling

DIN 471 / 472

Insert
I.C. Ordering Code W R Holder Code
Type
SG 16 R W14 .055 .004
SG 16 R W17 .067 .004
SG 16 R W19 .077 .006
SG 16 R W22 .089 .006 H27, H28
SI16 3/8"
SG 16 R W27 .108 .008
SG 16 R W32 .128 .008
SG 16 R W42 .167 .008
*SG 16 R W43 .171 .008 H27, H28, H29
Right hand cutting

Insert
I.C. Ordering Code W R Holder Code
Type
SI16 3/8" SG 16 L W43 .171 .008 H29
Left hand cutting

* T max = .08
When using holders SRI41-I16 and SRI2541-I16

** Maximum groove depth (T max) according to the toolholder.
