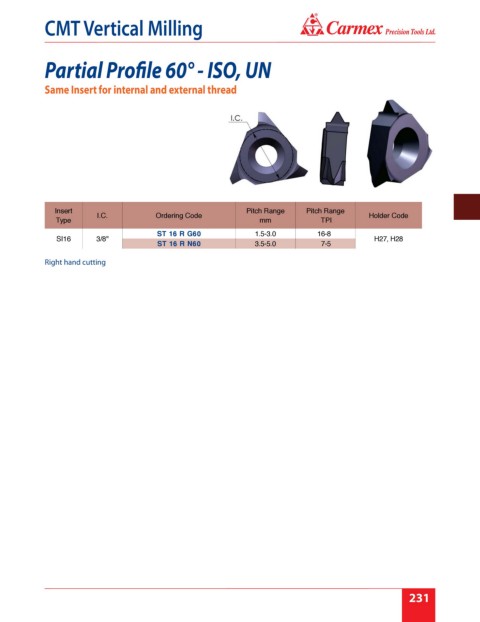

CMT Vertical Milling

Partial Profile 60° - ISO, UN

Same Insert for internal and external thread

Insert Pitch Range Pitch Range
I.C. Ordering Code Holder Code
Type mm TPI
ST 16 R G60 1.5-3.0 16-8
SI16 3/8" H27, H28
ST 16 R N60 3.5-5.0 7-5
Right hand cutting

231
