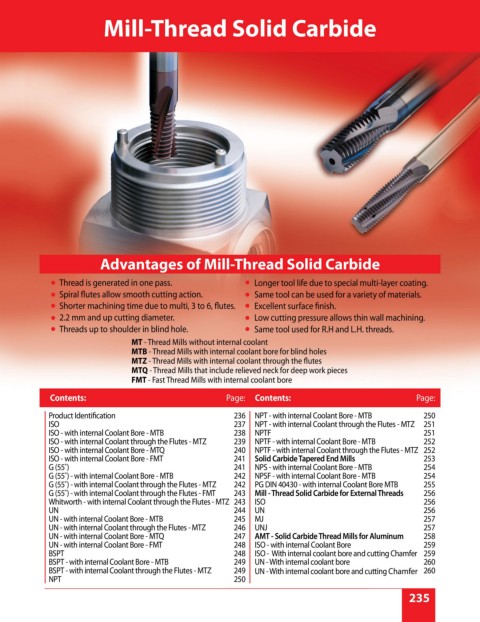

Page 241 - Carmex - Inch Catalog 2018-19 Rev. B

Mill-Thread Solid Carbide

Advantages of Mill-Thread Solid Carbide

Thread is generated in one pass. Longer tool life due to special multi-layer coating.
Spiral flutes allow smooth cutting action. Same tool can be used for a variety of materials.
Shorter machining time due to multi, 3 to 6, flutes. Excellent surface finish.
2.2 mm and up cutting diameter. Low cutting pressure allows thin wall machining.
Threads up to shoulder in blind hole. Same tool used for R.H and L.H. threads.
MT - Thread Mills without internal coolant
MTB - Thread Mills with internal coolant bore for blind holes
MTZ - Thread Mills with internal coolant through the flutes
MTQ - Thread Mills that include relieved neck for deep work pieces
FMT - Fast Thread Mills with internal coolant bore
Contents: Page: Contents: Page:

Product Identification 236 NPT - with internal Coolant Bore - MTB 250
ISO 237 NPT - with internal Coolant through the Flutes - MTZ 251
ISO - with internal Coolant Bore - MTB 238 NPTF 251
ISO - with internal Coolant through the Flutes - MTZ 239 NPTF - with internal Coolant Bore - MTB 252
ISO - with internal Coolant Bore - MTQ 240 NPTF - with internal Coolant through the Flutes - MTZ 252
ISO - with internal Coolant Bore - FMT 241 Solid Carbide Tapered End Mills 253
G (55˚) 241 NPS - with internal Coolant Bore - MTB 254
G (55˚) - with internal Coolant Bore - MTB 242 NPSF - with internal Coolant Bore - MTB 254
G (55˚) - with internal Coolant through the Flutes - MTZ 242 PG DIN 40430 - with internal Coolant Bore MTB 255
G (55˚) - with internal Coolant through the Flutes - FMT 243 Mill - Thread Solid Carbide for External Threads 256
Whitworth - with internal Coolant through the Flutes - MTZ 243 ISO 256
UN 244 UN 256
UN - with internal Coolant Bore - MTB 245 MJ 257
UN - with internal Coolant through the Flutes - MTZ 246 UNJ 257
UN - with internal Coolant Bore - MTQ 247 AMT - Solid Carbide Thread Mills for Aluminum 258
UN - with internal Coolant Bore - FMT 248 ISO - with internal Coolant Bore 259
BSPT 248 ISO - With internal coolant bore and cutting Chamfer 259
BSPT - with internal Coolant Bore - MTB 249 UN - With internal coolant bore 260
BSPT - with internal Coolant through the Flutes - MTZ 249 UN - With internal coolant bore and cutting Chamfer 260
NPT 250
