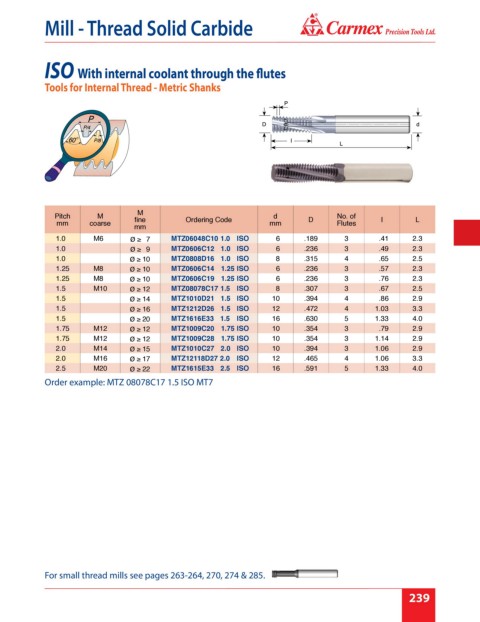

Page 245 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mill - Thread Solid Carbide

ISO With internal coolant through the flutes

Tools for Internal Thread - Metric Shanks

M
Pitch M fine Ordering Code d D No. of I L
mm coarse mm Flutes
mm
1.0 M6 ø ≥ 7 MTZ06048C10 1.0 ISO 6 .189 3 .41 2.3
1.0 ø ≥ 9 MTZ0606C12 1.0 ISO 6 .236 3 .49 2.3
1.0 ø ≥ 10 MTZ0808D16 1.0 ISO 8 .315 4 .65 2.5
1.25 M8 ø ≥ 10 MTZ0606C14 1.25 ISO 6 .236 3 .57 2.3
1.25 M8 ø ≥ 10 MTZ0606C19 1.25 ISO 6 .236 3 .76 2.3
1.5 M10 ø ≥ 12 MTZ08078C17 1.5 ISO 8 .307 3 .67 2.5
1.5 ø ≥ 14 MTZ1010D21 1.5 ISO 10 .394 4 .86 2.9
1.5 ø ≥ 16 MTZ1212D26 1.5 ISO 12 .472 4 1.03 3.3
1.5 ø ≥ 20 MTZ1616E33 1.5 ISO 16 .630 5 1.33 4.0
1.75 M12 ø ≥ 12 MTZ1009C20 1.75 ISO 10 .354 3 .79 2.9
1.75 M12 ø ≥ 12 MTZ1009C28 1.75 ISO 10 .354 3 1.14 2.9
2.0 M14 ø ≥ 15 MTZ1010C27 2.0 ISO 10 .394 3 1.06 2.9
2.0 M16 ø ≥ 17 MTZ12118D27 2.0 ISO 12 .465 4 1.06 3.3
2.5 M20 ø ≥ 22 MTZ1615E33 2.5 ISO 16 .591 5 1.33 4.0
Order example: MTZ 08078C17 1.5 ISO MT7

For small thread mills see pages 263-264, 270, 274 & 285.
