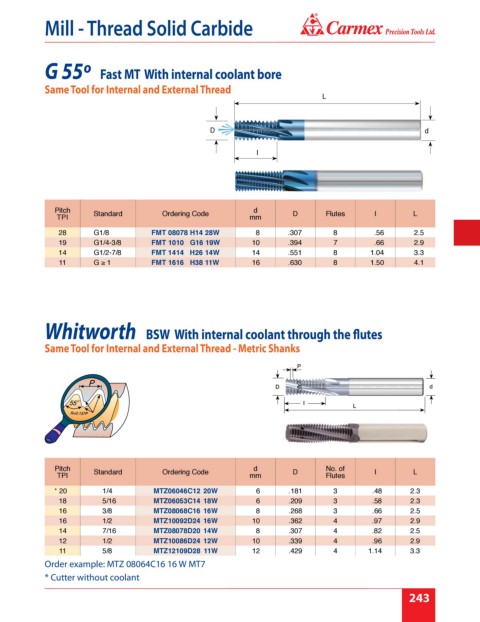

Page 249 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mill - Thread Solid Carbide

G 55º Fast MT With internal coolant bore

Same Tool for Internal and External Thread
L

D d

I

Pitch d
TPI Standard Ordering Code mm D Flutes I L

28 G1/8 FMT 08078 H14 28W 8 .307 8 .56 2.5
19 G1/4-3/8 FMT 1010 G16 19W 10 .394 7 .66 2.9
14 G1/2-7/8 FMT 1414 H26 14W 14 .551 8 1.04 3.3
11 G ≥ 1 FMT 1616 H38 11W 16 .630 8 1.50 4.1

Whitworth BSW With internal coolant through the flutes
Same Tool for Internal and External Thread - Metric Shanks

Pitch d No. of
TPI Standard Ordering Code mm D Flutes I L
* 20 1/4 MTZ06046C12 20W 6 .181 3 .48 2.3
18 5/16 MTZ06053C14 18W 6 .209 3 .58 2.3
16 3/8 MTZ08068C16 16W 8 .268 3 .66 2.5
16 1/2 MTZ10092D24 16W 10 .362 4 .97 2.9
14 7/16 MTZ08078D20 14W 8 .307 4 .82 2.5
12 1/2 MTZ10086D24 12W 10 .339 4 .96 2.9
11 5/8 MTZ12109D28 11W 12 .429 4 1.14 3.3
Order example: MTZ 08064C16 16 W MT7
* Cutter without coolant
