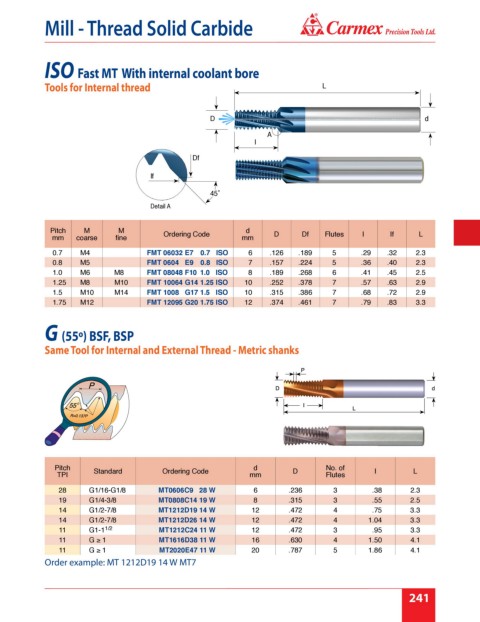

Page 247 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mill - Thread Solid Carbide

ISO Fast MT With internal coolant bore

Tools for Internal thread L

D d

A
I

Df

lf
45˚
Detail A

Pitch M M d
mm coarse fine Ordering Code mm D Df Flutes I If L
0.7 M4 FMT 06032 E7 0.7 ISO 6 .126 .189 5 .29 .32 2.3
0.8 M5 FMT 0604 E9 0.8 ISO 7 .157 .224 5 .36 .40 2.3
1.0 M6 M8 FMT 08048 F10 1.0 ISO 8 .189 .268 6 .41 .45 2.5
1.25 M8 M10 FMT 10064 G14 1.25 ISO 10 .252 .378 7 .57 .63 2.9
1.5 M10 M14 FMT 1008 G17 1.5 ISO 10 .315 .386 7 .68 .72 2.9
1.75 M12 FMT 12095 G20 1.75 ISO 12 .374 .461 7 .79 .83 3.3

G (55º) BSF, BSP

Same Tool for Internal and External Thread - Metric shanks

Pitch d No. of
TPI Standard Ordering Code mm D Flutes I L

28 G1/16-G1/8 MT0606C9 28 W 6 .236 3 .38 2.3
19 G1/4-3/8 MT0808C14 19 W 8 .315 3 .55 2.5
14 G1/2-7/8 MT1212D19 14 W 12 .472 4 .75 3.3
14 G1/2-7/8 MT1212D26 14 W 12 .472 4 1.04 3.3
11 G1-1 1/2 MT1212C24 11 W 12 .472 3 .95 3.3
11 G ≥ 1 MT1616D38 11 W 16 .630 4 1.50 4.1
11 G ≥ 1 MT2020E47 11 W 20 .787 5 1.86 4.1
Order example: MT 1212D19 14 W MT7
