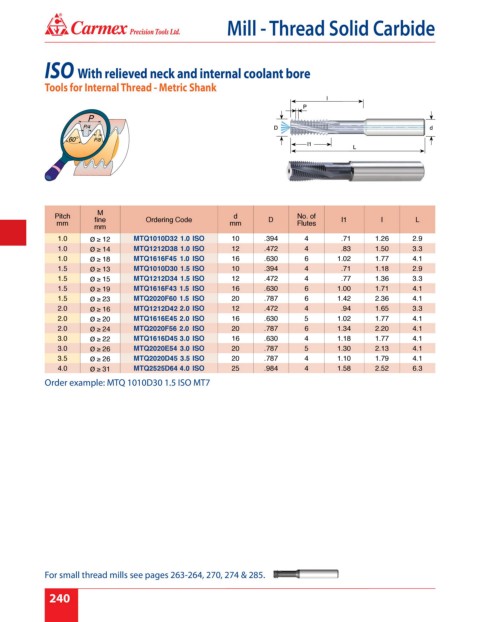

Page 246 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mill - Thread Solid Carbide

ISO With relieved neck and internal coolant bore

Tools for Internal Thread - Metric Shank

M
Pitch fine Ordering Code d D No. of l1 I L
mm mm Flutes
mm
1.0 ø ≥ 12 MTQ1010D32 1.0 ISO 10 .394 4 .71 1.26 2.9
1.0 ø ≥ 14 MTQ1212D38 1.0 ISO 12 .472 4 .83 1.50 3.3
1.0 ø ≥ 18 MTQ1616F45 1.0 ISO 16 .630 6 1.02 1.77 4.1
1.5 ø ≥ 13 MTQ1010D30 1.5 ISO 10 .394 4 .71 1.18 2.9
1.5 ø ≥ 15 MTQ1212D34 1.5 ISO 12 .472 4 .77 1.36 3.3
1.5 ø ≥ 19 MTQ1616F43 1.5 ISO 16 .630 6 1.00 1.71 4.1
1.5 ø ≥ 23 MTQ2020F60 1.5 ISO 20 .787 6 1.42 2.36 4.1
2.0 ø ≥ 16 MTQ1212D42 2.0 ISO 12 .472 4 .94 1.65 3.3
2.0 ø ≥ 20 MTQ1616E45 2.0 ISO 16 .630 5 1.02 1.77 4.1
2.0 ø ≥ 24 MTQ2020F56 2.0 ISO 20 .787 6 1.34 2.20 4.1
3.0 ø ≥ 22 MTQ1616D45 3.0 ISO 16 .630 4 1.18 1.77 4.1
3.0 ø ≥ 26 MTQ2020E54 3.0 ISO 20 .787 5 1.30 2.13 4.1
3.5 ø ≥ 26 MTQ2020D45 3.5 ISO 20 .787 4 1.10 1.79 4.1
4.0 ø ≥ 31 MTQ2525D64 4.0 ISO 25 .984 4 1.58 2.52 6.3
Order example: MTQ 1010D30 1.5 ISO MT7

For small thread mills see pages 263-264, 270, 274 & 285.
