P. 238
®

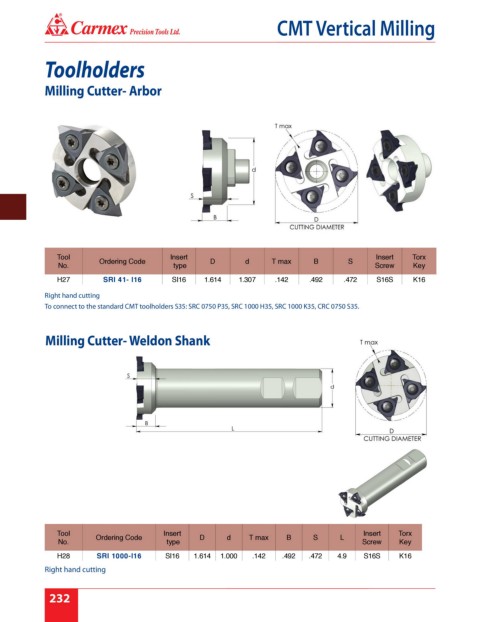

CMT Vertical Milling
Toolholders
Milling Cutter- Arbor
Tool Ordering Code Insert D d T max B S Insert Torx
No. type Screw Key
H27 SRI 41- I16 SI16 1.614 1.307 .142 .492 .472 S16S K16
Right hand cutting
To connect to the standard CMT toolholders S35: SRC 0750 P35, SRC 1000 H35, SRC 1000 K35, CRC 0750 S35.
Milling Cutter- Weldon Shank
Tool Ordering Code Insert D d T max B S L Insert Torx
No. type Screw Key
H28 SRI 1000-I16 SI16 1.614 1.000 .142 .492 .472 4.9 S16S K16
Right hand cutting
232
