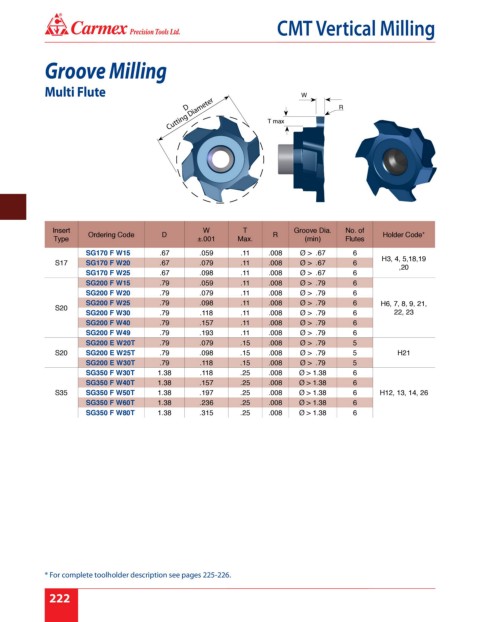

Page 228 - Carmex - Inch Catalog 2018-19 Rev. B

®
CMT Vertical Milling

Groove Milling

Multi Flute W
Cutting Diameter T max R
D

Insert Ordering Code D W T R Groove Dia. No. of Holder Code*
Type ±.001 Max. (min) Flutes
SG170 F W15 .67 .059 .11 .008 Ø > .67 6
H3, 4, 5,18,19
S17 SG170 F W20 .67 .079 .11 .008 Ø > .67 6
,20
SG170 F W25 .67 .098 .11 .008 Ø > .67 6
SG200 F W15 .79 .059 .11 .008 Ø > .79 6
SG200 F W20 .79 .079 .11 .008 Ø > .79 6
SG200 F W25 .79 .098 .11 .008 Ø > .79 6 H6, 7, 8, 9, 21,
S20
SG200 F W30 .79 .118 .11 .008 Ø > .79 6 22, 23
SG200 F W40 .79 .157 .11 .008 Ø > .79 6
SG200 F W49 .79 .193 .11 .008 Ø > .79 6
SG200 E W20T .79 .079 .15 .008 Ø > .79 5
S20 SG200 E W25T .79 .098 .15 .008 Ø > .79 5 H21
SG200 E W30T .79 .118 .15 .008 Ø > .79 5
SG350 F W30T 1.38 .118 .25 .008 Ø > 1.38 6
SG350 F W40T 1.38 .157 .25 .008 Ø > 1.38 6
S35 SG350 F W50T 1.38 .197 .25 .008 Ø > 1.38 6 H12, 13, 14, 26
SG350 F W60T 1.38 .236 .25 .008 Ø > 1.38 6
SG350 F W80T 1.38 .315 .25 .008 Ø > 1.38 6

* For complete toolholder description see pages 225-226.
