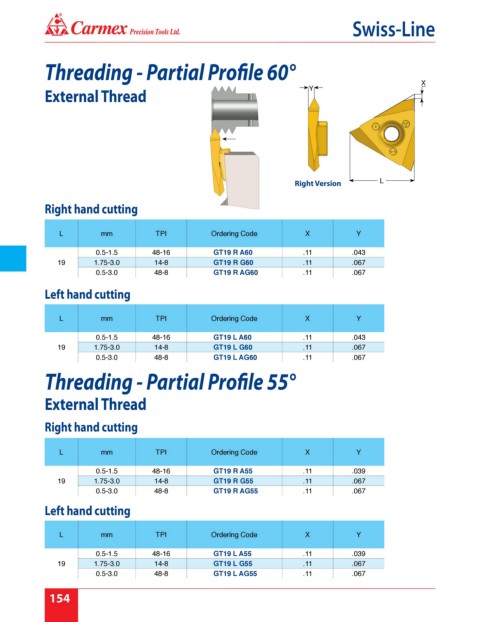

Page 160 - Carmex - Inch Catalog 2018-19 Rev. B
P. 160
®
Swiss-Line
Threading - Partial Profile 60°
X
External Thread
Y
Right Version L
Right hand cutting
L mm TPI Ordering Code X Y
0.5-1.5 48-16 GT19 R A60 .11 .043
19 1.75-3.0 14-8 GT19 R G60 .11 .067
0.5-3.0 48-8 GT19 R AG60 .11 .067
Left hand cutting
L mm TPI Ordering Code X Y
0.5-1.5 48-16 GT19 L A60 .11 .043
19 1.75-3.0 14-8 GT19 L G60 .11 .067
0.5-3.0 48-8 GT19 L AG60 .11 .067
Threading - Partial Profile 55°
External Thread
Right hand cutting
L mm TPI Ordering Code X Y
0.5-1.5 48-16 GT19 R A55 .11 .039
19 1.75-3.0 14-8 GT19 R G55 .11 .067
0.5-3.0 48-8 GT19 R AG55 .11 .067
Left hand cutting
L mm TPI Ordering Code X Y
0.5-1.5 48-16 GT19 L A55 .11 .039
19 1.75-3.0 14-8 GT19 L G55 .11 .067
0.5-3.0 48-8 GT19 L AG55 .11 .067
154
