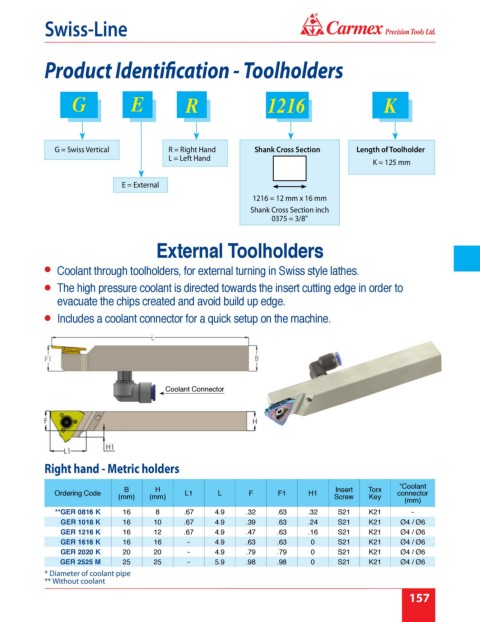

Page 163 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Product Identification - Toolholders

G E R 1216 K

G = Swiss Vertical R = Right Hand Shank Cross Section Length of Toolholder
L = Left Hand
K = 125 mm

E = External
1216 = 12 mm x 16 mm
Shank Cross Section inch
0375 = 3/8"

External Toolholders

Coolant through toolholders, for external turning in Swiss style lathes.

The high pressure coolant is directed towards the insert cutting edge in order to
evacuate the chips created and avoid build up edge.

Includes a coolant connector for a quick setup on the machine.

Coolant Connector

Right hand - Metric holders

*Coolant
B H Insert Torx
Ordering Code L1 L F F1 H1 connector
(mm) (mm) Screw Key
(mm)
**GER 0816 K 16 8 .67 4.9 .32 .63 .32 S21 K21 -
GER 1016 K 16 10 .67 4.9 .39 .63 .24 S21 K21 Ø4 / Ø6
GER 1216 K 16 12 .67 4.9 .47 .63 .16 S21 K21 Ø4 / Ø6
GER 1616 K 16 16 - 4.9 .63 .63 0 S21 K21 Ø4 / Ø6
GER 2020 K 20 20 - 4.9 .79 .79 0 S21 K21 Ø4 / Ø6
GER 2525 M 25 25 - 5.9 .98 .98 0 S21 K21 Ø4 / Ø6
* Diameter of coolant pipe
** Without coolant
