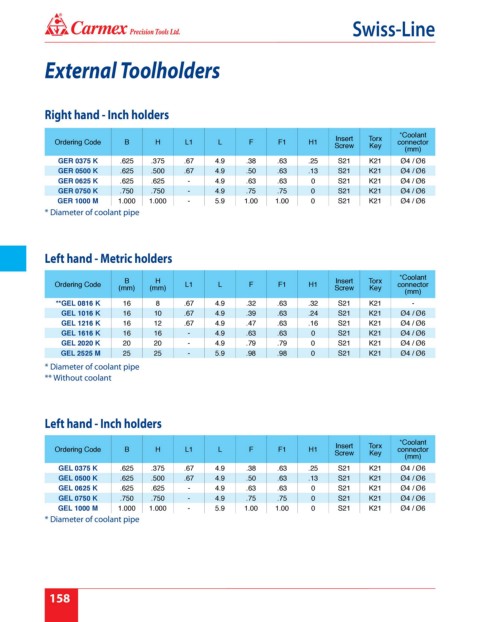

Page 164 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

External Toolholders

Right hand - Inch holders

*Coolant
Insert Torx
Ordering Code B H L1 L F F1 H1 connector
Screw Key
(mm)
GER 0375 K .625 .375 .67 4.9 .38 .63 .25 S21 K21 Ø4 / Ø6
GER 0500 K .625 .500 .67 4.9 .50 .63 .13 S21 K21 Ø4 / Ø6
GER 0625 K .625 .625 - 4.9 .63 .63 0 S21 K21 Ø4 / Ø6
GER 0750 K .750 .750 - 4.9 .75 .75 0 S21 K21 Ø4 / Ø6
GER 1000 M 1.000 1.000 - 5.9 1.00 1.00 0 S21 K21 Ø4 / Ø6
* Diameter of coolant pipe

Left hand - Metric holders

*Coolant
B H Insert Torx
Ordering Code L1 L F F1 H1 connector
(mm) (mm) Screw Key
(mm)
**GEL 0816 K 16 8 .67 4.9 .32 .63 .32 S21 K21 -
GEL 1016 K 16 10 .67 4.9 .39 .63 .24 S21 K21 Ø4 / Ø6
GEL 1216 K 16 12 .67 4.9 .47 .63 .16 S21 K21 Ø4 / Ø6
GEL 1616 K 16 16 - 4.9 .63 .63 0 S21 K21 Ø4 / Ø6
GEL 2020 K 20 20 - 4.9 .79 .79 0 S21 K21 Ø4 / Ø6
GEL 2525 M 25 25 - 5.9 .98 .98 0 S21 K21 Ø4 / Ø6
* Diameter of coolant pipe
** Without coolant

Left hand - Inch holders

*Coolant
Insert Torx
Ordering Code B H L1 L F F1 H1 connector
Screw Key
(mm)
GEL 0375 K .625 .375 .67 4.9 .38 .63 .25 S21 K21 Ø4 / Ø6
GEL 0500 K .625 .500 .67 4.9 .50 .63 .13 S21 K21 Ø4 / Ø6
GEL 0625 K .625 .625 - 4.9 .63 .63 0 S21 K21 Ø4 / Ø6
GEL 0750 K .750 .750 - 4.9 .75 .75 0 S21 K21 Ø4 / Ø6
GEL 1000 M 1.000 1.000 - 5.9 1.00 1.00 0 S21 K21 Ø4 / Ø6
* Diameter of coolant pipe

158
