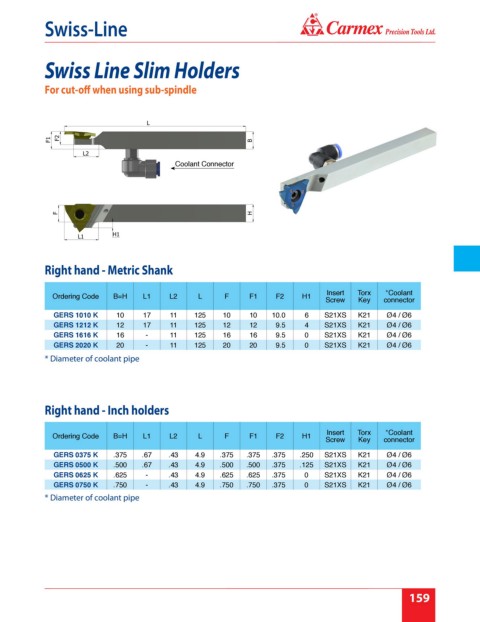

Page 165 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Swiss Line Slim Holders

For cut-off when using sub-spindle

Coolant Connector

Right hand - Metric Shank

Insert Torx *Coolant
Ordering Code B=H L1 L2 L F F1 F2 H1
Screw Key connector
GERS 1010 K 10 17 11 125 10 10 10.0 6 S21XS K21 Ø4 / Ø6
GERS 1212 K 12 17 11 125 12 12 9.5 4 S21XS K21 Ø4 / Ø6
GERS 1616 K 16 - 11 125 16 16 9.5 0 S21XS K21 Ø4 / Ø6
GERS 2020 K 20 - 11 125 20 20 9.5 0 S21XS K21 Ø4 / Ø6
* Diameter of coolant pipe

Right hand - Inch holders

Insert Torx *Coolant
Ordering Code B=H L1 L2 L F F1 F2 H1
Screw Key connector
GERS 0375 K .375 .67 .43 4.9 .375 .375 .375 .250 S21XS K21 Ø4 / Ø6
GERS 0500 K .500 .67 .43 4.9 .500 .500 .375 .125 S21XS K21 Ø4 / Ø6
GERS 0625 K .625 - .43 4.9 .625 .625 .375 0 S21XS K21 Ø4 / Ø6
GERS 0750 K .750 - .43 4.9 .750 .750 .375 0 S21XS K21 Ø4 / Ø6
* Diameter of coolant pipe
