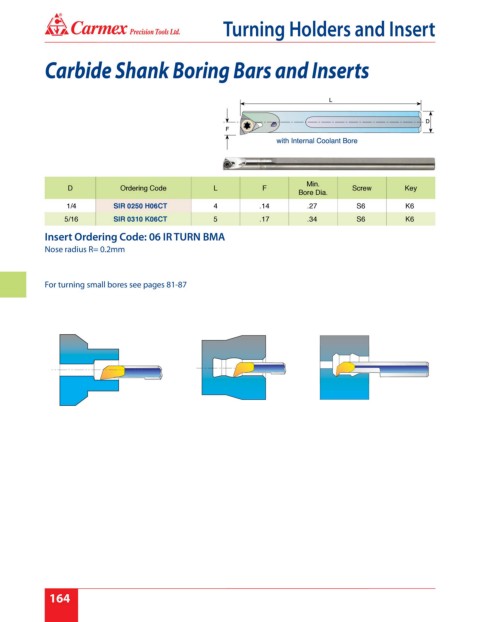

Page 170 - Carmex - Inch Catalog 2018-19 Rev. B

®
Turning Holders and Insert

Carbide Shank Boring Bars and Inserts

Min.
D Ordering Code L F Screw Key
Bore Dia.
1/4 SIR 0250 H06CT 4 .14 .27 S6 K6
5/16 SIR 0310 K06CT 5 .17 .34 S6 K6

Insert Ordering Code: 06 IR TURN BMA
Nose radius R= 0.2mm

For turning small bores see pages 81-87
