P. 173
®

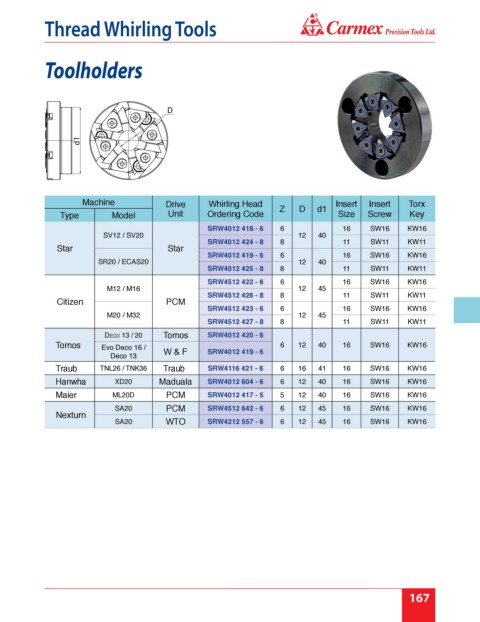

Thread Whirling Tools
Toolholders
D
d1
Machine Drive Whirling Head Insert Insert Torx
Z D d1
Type Model Unit Ordering Code Size Screw Key
SRW4012 418 - 6 6 16 SW16 KW16
SV12 / SV20 12 40
SRW4012 424 - 8 8 11 SW11 KW11
Star Star
SRW4012 419 - 6 6 16 SW16 KW16
SR20 / ECAS20 12 40
SRW4012 425 - 8 8 11 SW11 KW11
SRW4512 422 - 6 6 16 SW16 KW16
M12 / M16 12 45
SRW4512 426 - 8 8 11 SW11 KW11
Citizen PCM
SRW4512 423 - 6 6 16 SW16 KW16
M20 / M32 12 45
SRW4512 427 - 8 8 11 SW11 KW11
Deco 13 / 20 Tornos SRW4012 420 - 6
Tornos Evo Deco 16 / 6 12 40 16 SW16 KW16
Deco 13 W & F SRW4012 419 - 6
Traub TNL26 / TNK36 Traub SRW4116 421 - 6 6 16 41 16 SW16 KW16
Hanwha XD20 Maduala SRW4012 604 - 6 6 12 40 16 SW16 KW16
Maier ML20D PCM SRW4012 417 - 5 5 12 40 16 SW16 KW16
SA20 PCM SRW4512 642 - 6 6 12 45 16 SW16 KW16
Nexturn
SA20 WTO SRW4212 557 - 6 6 12 45 16 SW16 KW16
167
