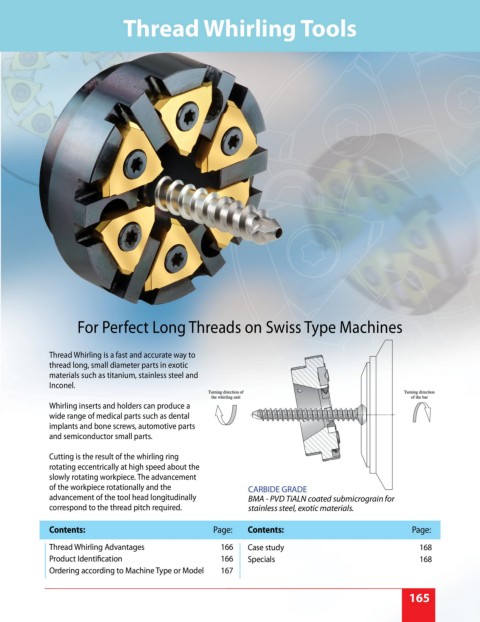

Thread Whirling Tools

For Perfect Long Threads on Swiss Type Machines

Thread Whirling is a fast and accurate way to
thread long, small diameter parts in exotic
materials such as titanium, stainless steel and
Inconel.

Whirling inserts and holders can produce a
wide range of medical parts such as dental
implants and bone screws, automotive parts
and semiconductor small parts.

Cutting is the result of the whirling ring
rotating eccentrically at high speed about the
slowly rotating workpiece. The advancement
of the workpiece rotationally and the CARBIDE GRADE
advancement of the tool head longitudinally BMA - PVD TiALN coated submicrograin for
correspond to the thread pitch required. stainless steel, exotic materials.

Contents: Page: Contents: Page:
Thread Whirling Advantages 166 Case study 168
Product Identification 166 Specials 168
Ordering according to Machine Type or Model 167
