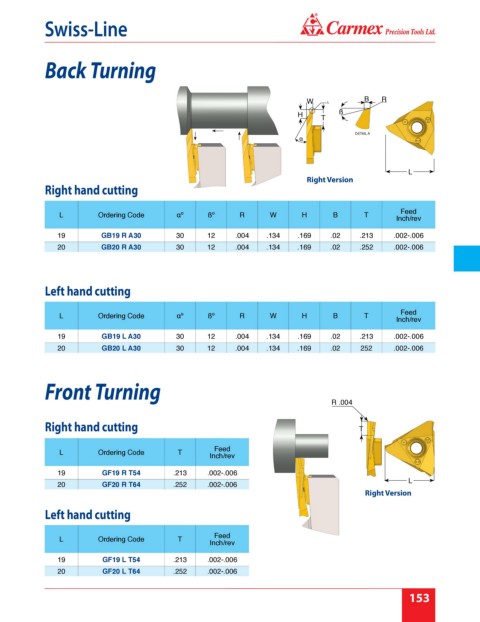

Page 159 - Carmex - Inch Catalog 2018-19 Rev. B
P. 159
®
Swiss-Line
Back Turning
W B R
ß
H
T
DETAIL A
α
L
Right Version
Right hand cutting
Feed
L Ordering Code ৠ᧠R W H B T
Inch/rev
19 GB19 R A30 30 12 .004 .134 .169 .02 .213 .002-.006
20 GB20 R A30 30 12 .004 .134 .169 .02 .252 .002-.006
Left hand cutting
Feed
L Ordering Code ৠ᧠R W H B T
Inch/rev
19 GB19 L A30 30 12 .004 .134 .169 .02 .213 .002-.006
20 GB20 L A30 30 12 .004 .134 .169 .02 252 .002-.006
Front Turning
R .004
Right hand cutting T
Feed
L Ordering Code T
Inch/rev
19 GF19 R T54 .213 .002-.006
L
20 GF20 R T64 .252 .002-.006
Right Version
Left hand cutting
Feed
L Ordering Code T
Inch/rev
19 GF19 L T54 .213 .002-.006
20 GF20 L T64 .252 .002-.006
153
