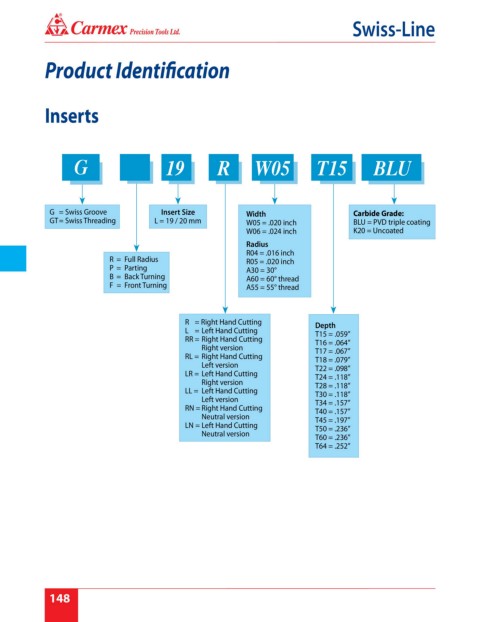

Swiss-Line
Product Identification
Inserts
G 19 R W05 T15 BLU
G = Swiss Groove Insert Size Width Carbide Grade:
GT = Swiss Threading L = 19 / 20 mm W05 = .020 inch BLU = PVD triple coating
W06 = .024 inch K20 = Uncoated
Radius
R04 = .016 inch
R = Full Radius R05 = .020 inch
P = Parting A30 = 30°
B = Back Turning A60 = 60° thread
F = Front Turning A55 = 55° thread
R = Right Hand Cutting Depth
L = Left Hand Cutting T15 = .059”
RR = Right Hand Cutting T16 = .064”
Right version T17 = .067”
RL = Right Hand Cutting T18 = .079”
Left version T22 = .098”
LR = Left Hand Cutting T24 = .118”
Right version T28 = .118”
LL = Left Hand Cutting T30 = .118”
Left version T34 = .157”
RN = Right Hand Cutting T40 = .157”
Neutral version T45 = .197”
LN = Left Hand Cutting T50 = .236”
Neutral version T60 = .236”
T64 = .252”
