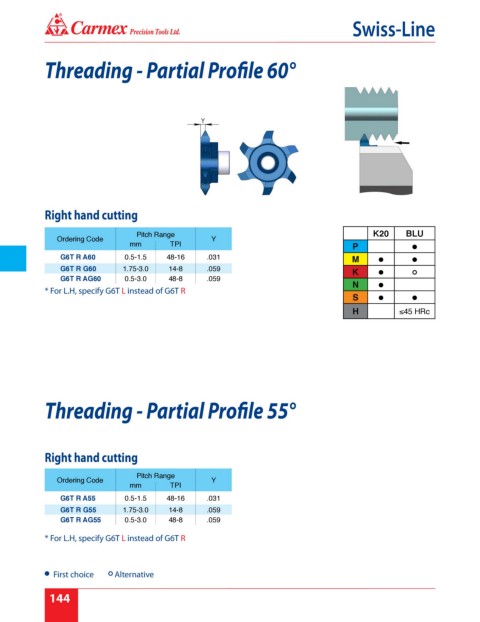

P. 150
®
Swiss-Line
Threading - Partial Profile 60°
Right hand cutting
Pitch Range K20 BLU
Ordering Code Y
mm TPI P
G6T R A60 0.5-1.5 48-16 .031 M
G6T R G60 1.75-3.0 14-8 .059
K
G6T R AG60 0.5-3.0 48-8 .059
* For L.H, specify G6T L instead of G6T R N
S
H ≤45 HRc
Threading - Partial Profile 55°
Right hand cutting
Pitch Range
Ordering Code Y
mm TPI
G6T R A55 0.5-1.5 48-16 .031
G6T R G55 1.75-3.0 14-8 .059
G6T R AG55 0.5-3.0 48-8 .059
* For L.H, specify G6T L instead of G6T R
First choice Alternative
144
