Swiss-Line

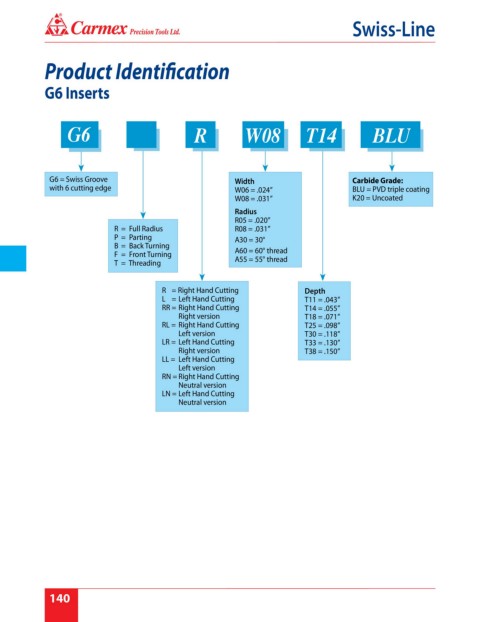

Product Identification

G6 Inserts

G6 R W08 T14 BLU

G6 = Swiss Groove Width Carbide Grade:
with 6 cutting edge W06 = .024” BLU = PVD triple coating
W08 = .031” K20 = Uncoated
Radius
R05 = .020”
R = Full Radius R08 = .031”
P = Parting A30 = 30°
B = Back Turning
F = Front Turning A60 = 60° thread
T = Threading A55 = 55° thread

R = Right Hand Cutting Depth
L = Left Hand Cutting T11 = .043”
RR = Right Hand Cutting T14 = .055”
Right version T18 = .071”
RL = Right Hand Cutting T25 = .098”
Left version T30 = .118”
LR = Left Hand Cutting T33 = .130”
Right version T38 = .150”
LL = Left Hand Cutting
Left version
RN = Right Hand Cutting
Neutral version
LN = Left Hand Cutting
Neutral version

140
