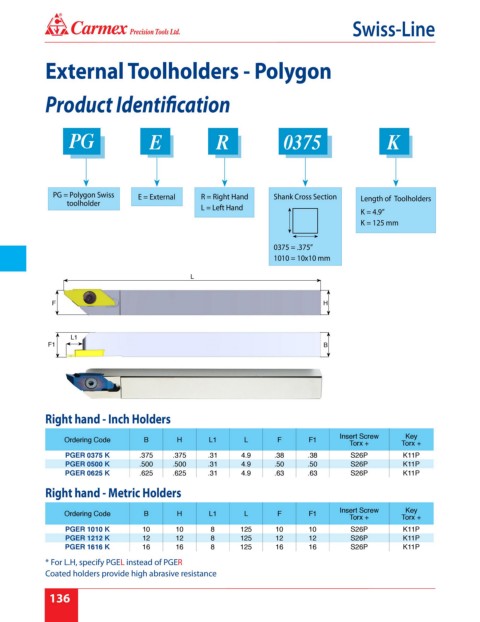

P. 142
®
Swiss-Line
External Toolholders - Polygon
Product Identification
PG E R 0375 K
PG = Polygon Swiss E = External R = Right Hand Shank Cross Section Length of Toolholders
toolholder L = Left Hand
K = 4.9”
K = 125 mm
0375 = .375”
1010 = 10x10 mm
L
F H
L1
F1 B
Right hand - Inch Holders
Insert Screw Key
Ordering Code B H L1 L F F1
Torx + Torx +
PGER 0375 K .375 .375 .31 4.9 .38 .38 S26P K11P
PGER 0500 K .500 .500 .31 4.9 .50 .50 S26P K11P
PGER 0625 K .625 .625 .31 4.9 .63 .63 S26P K11P
Right hand - Metric Holders
Insert Screw Key
Ordering Code B H L1 L F F1
Torx + Torx +
PGER 1010 K 10 10 8 125 10 10 S26P K11P
PGER 1212 K 12 12 8 125 12 12 S26P K11P
PGER 1616 K 16 16 8 125 16 16 S26P K11P
* For L.H, specify PGEL instead of PGER
Coated holders provide high abrasive resistance
